Description

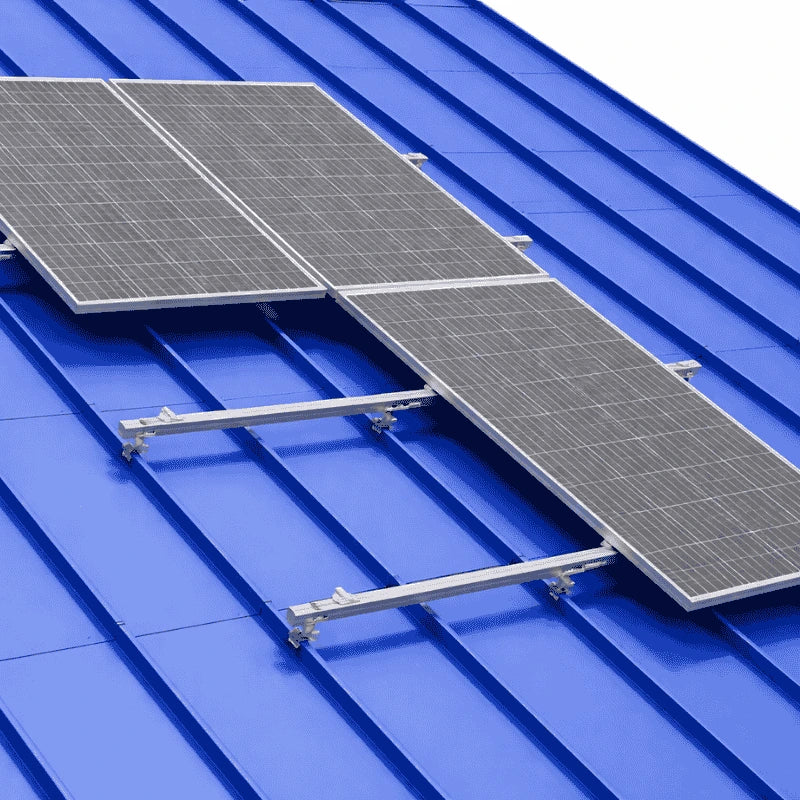

This mounting kit for 12 photovoltaic panels, arranged in a single row, is designed for installation on sandwich panel or trapezoidal sheet metal roofs, using the compact MiniRail K2 system.

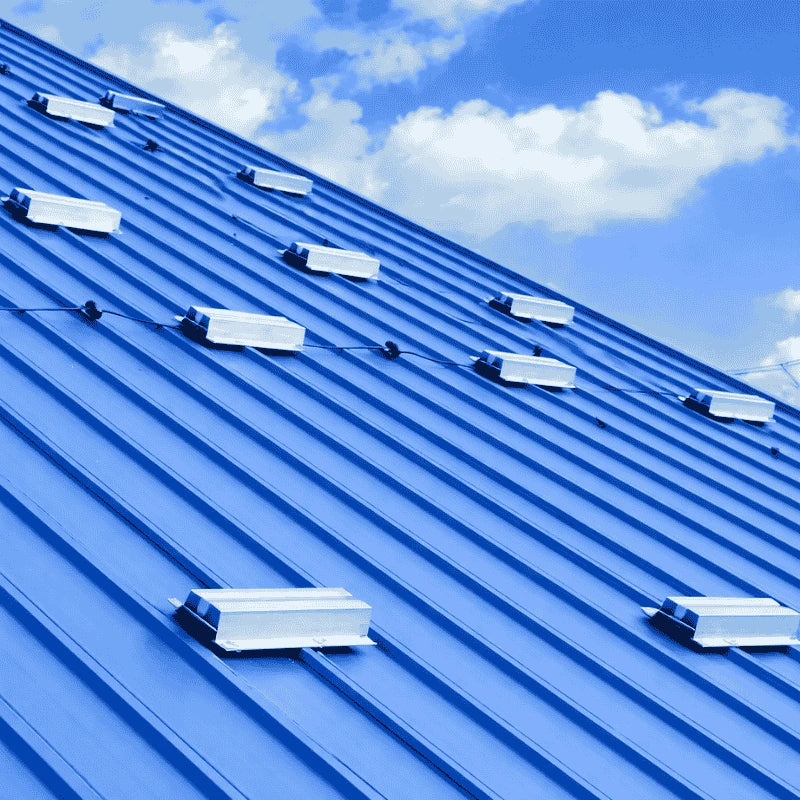

Unlike traditional systems with long rails, this kit uses mini-rails that are mounted directly onto the roof, significantly reducing installation time and associated costs. It is the ideal solution for industrial applications, industrial halls and commercial buildings.
The structure allows for a secure and watertight fix, thanks to self-tapping screws with gaskets, and is optimised for durability and operational efficiency.
?For 2-row mounting, the following combination is recommended:
This configuration offers flexibility and optimal distribution of components.

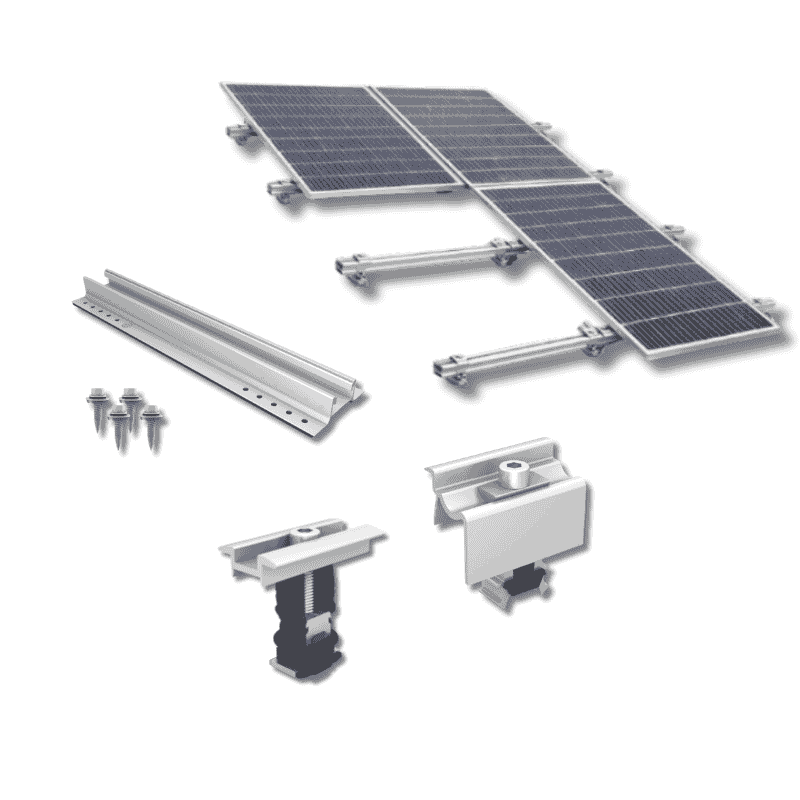

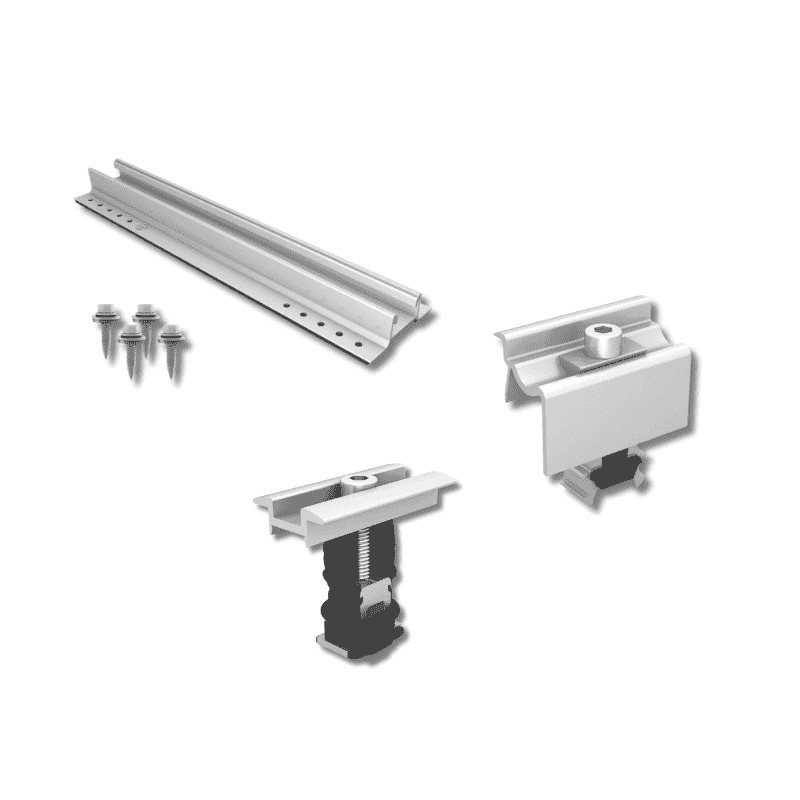

Kit contents
-
MiniRail MK2 Set (Generation 2), K2 (2004211) – 26 pcs
-
Photovoltaic panel end clamp 30-42mm, K2 (2002514) – 4 pcs
-
Double photovoltaic panel clamp 25-40mm, K2 (2004146) – 22 pcs
Key features
- Kit for 12 photovoltaic panels
-
Single-row configuration
- Mounting on sandwich panel / trapezoidal sheet metal
-
MiniRail K2 system
- No long rails
- Quick and efficient installation
- For 2 rows: 2 x 6-panel kit
Benefits
✔ Quick and efficient installation
✔ Low installation costs
✔ Compact system
✔ Ideal for industrial applications
✔ Secure sealing and high durability
| General information |
| Product type |
Photovoltaic mounting structure kit |
| Number of panels |
12 panels |
| Configuration |
1 row |
| Roof type |
Sandwich panel / trapezoidal sheet metal |
| Compatibility |
| System |
MiniRail K2 Systems |
| Package contents |
| MiniRail 2004211 |
26 pcs |
| End clamp 2002514 |
4 pcs |
| Mid-section clamp 2004146 |
22 pcs |
| Configuration recommendation |
| For 2-row installation |
2 x kit of 6 panels |
