Description

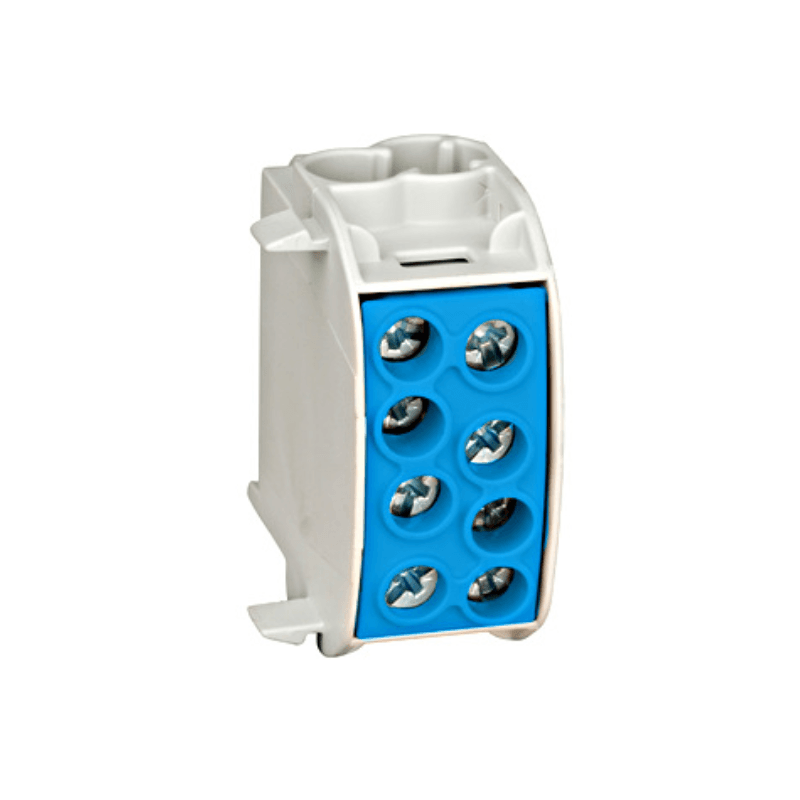

This insulated 1P-type junction terminal with 4 connection points is ideal for electrical installations requiring secure and efficient connections. Constructed from copper for high conductivity and enhanced durability, the terminal delivers excellent performance across a wide range of industrial and commercial applications. Its blue colour and compact design allow for easy integration into various electrical configurations. The terminal can also operate in a temperature range from -35°C to 70°C, making it resistant to a variety of environmental conditions.
Key technical specifications:
-
Length: 55.70 mm
-
Net width: 29.30 mm
-
Height: 49.30 mm
-
Net weight: 0.09 kg
-
Dissipation power: 2.10 W
-
Ambient temperature: -35°C to 70°C
-
Number of poles: 1 pole
-
Colour: Blue
-
Connection material: Copper
-
Cable type: Max. 35mm²
-
Junction terminals: 25mm² 1-pole, 2-way
This junction terminal is an ideal choice for ensuring safe and efficient electrical connections, being suitable for industrial or commercial environments.
