Description

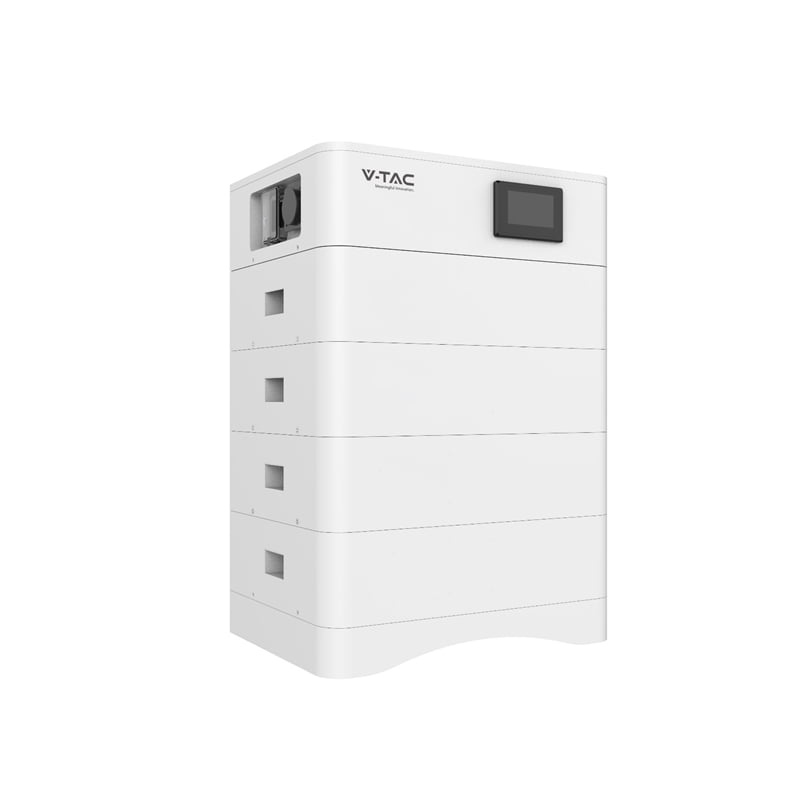

The LiFePO4 High Voltage modular battery is an advanced and flexible energy storage solution, ideal for use with inverters from Deye, Megarevo, Afore, GoodWe, Solis and Sofar. This battery allows storage capacity to be expanded from 15kWh up to 40kWh by adding 5.12kWh modules, thus offering exceptional adaptability for a variety of energy needs.
Key Features:
-
Modular Design:
- Each module has a nominal energy capacity of 5.12kWh and a nominal capacity of 100Ah, with a nominal voltage of 51.2V.
- The system supports series configurations, allowing expansion up to 8 modules, for a maximum capacity of 40.96kWh.
-
Advanced Technology:
- It utilises state-of-the-art LFP (LiFePO4) technology, ensuring higher energy density and an extended service life.
- The cycle life is over 6,000 cycles at a temperature of 25±2°C and a charge/discharge rate of 0.5C/0.5C, maintaining 70% of the initial capacity.
-
Compatibility and Scalability:
- Compatible with inverters from Deye, Megarevo, Afore, GoodWe, Solis and Sofar.
- Enables real-time monitoring of charging and discharging, online system updates and easy maintenance.
-
Performance and Efficiency:
- The rated charging/discharging current is 40A, with a maximum current of 50A.
- High efficiency thanks to intelligent SOC (State of Charge) management and advanced algorithms.
-
Dimensions and Weight:
- The module dimensions are 590mm x 420mm x 194mm, with a weight of approximately 45.6kg.
- The complete system varies in size and weight depending on the number of modules, ranging from 15kWh (161.4kg) to 40kWh (389.4kg).
-
Operating Conditions:
- The operating temperature for charging is between 0°C and 45°C, and for discharging between -10°C and 55°C.
- The recommended storage temperature is between 0°C and 35°C, and the maximum operating altitude is 2000m.
-
Protection and Safety:
- IP65 rating for protection against dust and water, ensuring reliable operation in various environments.
Technical Specifications:
| Rated Capacity |
Nominal Voltage |
Usable Capacity |
Dimensions (mm) |
Weight (kg) |
Recommended Current (A) |
| 15.36kWh |
153.6V |
12.29kWh |
590x420x698 |
161.4 |
40 |
| 20.48 kWh |
204.8V |
16.38 kWh |
590x420x849 |
207.0 |
40 |
| 25.60kWh |
256.0V |
20.48 kWh |
590x420x1000 |
252.6 |
40 |
| 30.72 kWh |
307.2V |
24.58kWh |
590x420x1151 |
298.2 |
40 |
| 35.84kWh |
358.4V |
28.67 kWh |
590x420x1302 |
343.8 |
40 |
| 40.96kWh |
409.6V |
32.77 kWh |
590x420x1453 |
389.4 |
40 |
The LiFePO4 High Voltage modular battery is the ideal solution for optimising energy storage in residential and commercial applications, offering flexibility, reliability and superior performance.
