Description

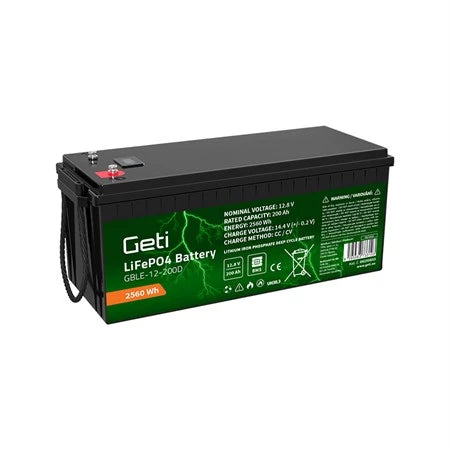

The GETI GBLE series LiFePO4 battery is designed for solar systems, caravans, boats, recreational vehicles, scooters and other applications requiring frequent and deep discharges. This modern, lightweight and high-performance battery is equipped with an integrated battery management system (BMS), which ensures not only fast charging and a long service life, but also protection against overcharging, over-discharging or short circuits.
The GETI LiFePO4 battery is an ideal alternative to lead-acid batteries, offering a much longer service life (up to 3,000 cycles), low weight and environmental benefits through reduced long-term costs and environmental impact.
Key benefits:
-
LiFePO4 technology: longer service life, compact dimensions and low weight compared to AGM and GEL batteries.
-
Integrated BMS: protection against overcharging, over-discharging or short-circuiting.
-
High performance and reliability.
-
Long service life (over 3000 cycles).
-
Fast charging, no memory effect.
-
Can be used in a wide range of applications.
-
Flexible positioning (can be mounted in any orientation).
-
High safety and robust construction (IP65).
Technical specifications:
-
Nominal voltage: 12.8V
-
Capacity: 200Ah
-
Energy: 2560Wh
-
Charging voltage: 14.4V (±0.2V)
-
Cut-off voltage: 10V
-
Charging mode: CC/CV (constant current + constant voltage)
-
Maximum continuous charging current: 200A
-
Maximum continuous discharge current: 200A
-
Maximum peak discharge current: 350A (5 sec.)
-
Lifespan: >3000 cycles at 80% DOD
-
BMS: integrated
-
Display: Yes
-
Bluetooth: No
-
Self-discharge: ≤2%/month at 25°C
-
Charging temperature: 0°C … +45°C
-
Discharge temperature: –20°C … +60°C
-
Storage temperature: –10°C … +45°C
-
Connectors: M8
-
Protection rating: IP65
-
Warranty: 2 years
-
Dimensions (L x W x H): 522 × 240 × 218 mm
-
Weight: 20.3 kg
Connectivity: batteries can be connected in series (maximum 4 units) and in parallel (maximum 1).
