Description

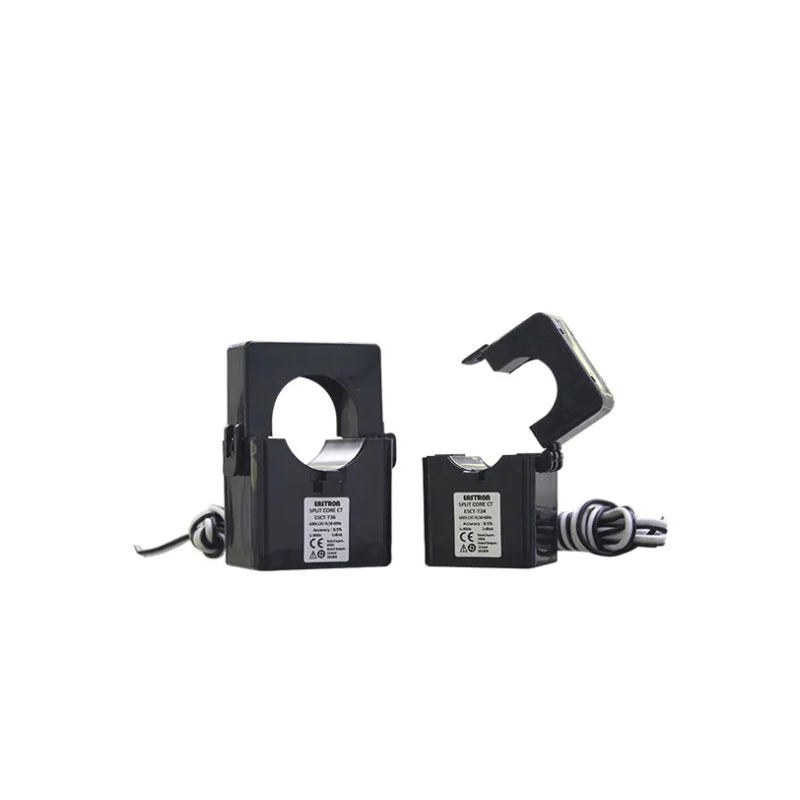

The ESCT-T24 current transformer is a split-core type, designed for the precise measurement of current in electricity monitoring applications. It is compatible with Eastron smart meters and DEYE inverters, ensuring easy integration into measurement and monitoring systems.

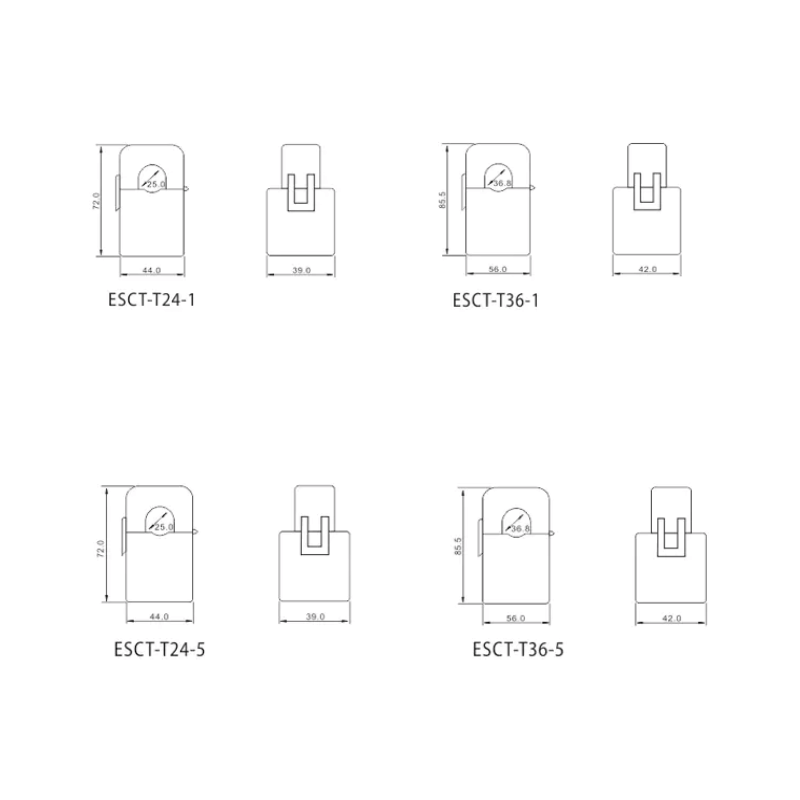

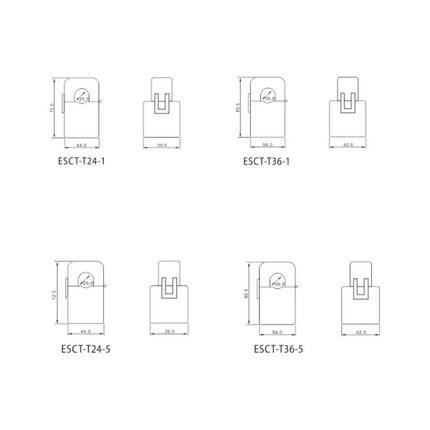

The ESCT-T24 series is available for currents between 100A and 300A at a 5A output. T24 refers to the 24 mm internal diameter of the hole through which the conductor passes through the coil.
Key features
-
Construction type: split-core (open-core) for quick installation without interrupting the circuit.
-
Rated primary current: 150A AC.
-
Secondary current: 5A AC.
-
Internal conductor passage diameter: 24 mm (T24).
-
Insulation: Class B, resistant to temperatures up to 130°C.
-
Accuracy: Class 0.5 (IEC 61869-2).
-
Core material: high-permeability ferromagnetic alloy.
-
Connectors: screw terminals for output cables.
Operational advantages
-
Easy installation in confined spaces thanks to the compact design.
-
Reliable and stable current measurement for industrial and photovoltaic applications.
-
Ideal for integration into three-phase monitoring systems with compatible smart meters.
