Description

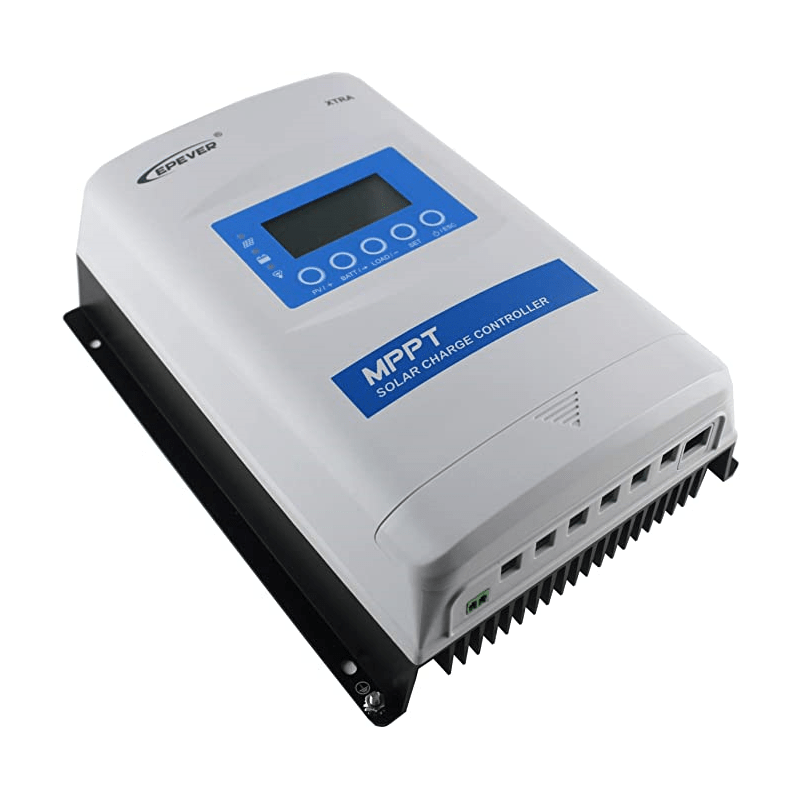

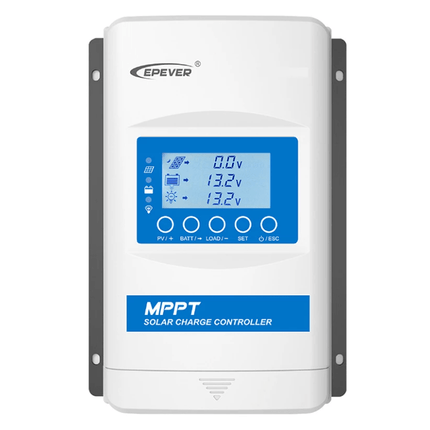

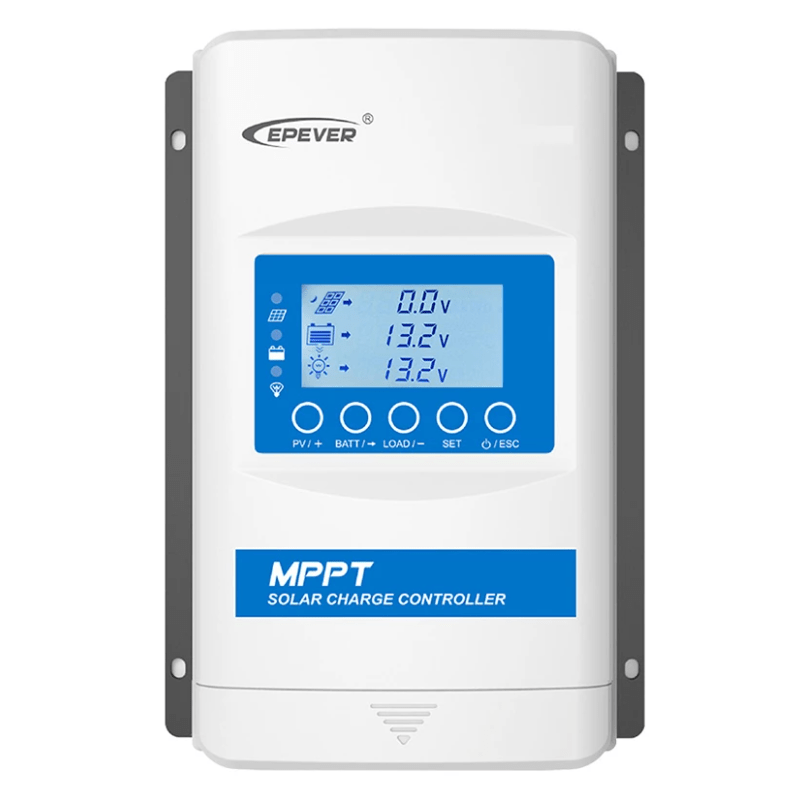

The XTRA series are advanced charge controllers for off-grid photovoltaic systems. To maximise energy output from photovoltaic panels whilst simultaneously reducing power losses across a wide range of operating conditions, the XTRA series employs an advanced intelligent algorithm that results in up to 30% more efficient charging compared to conventional PWM modulation. The XTRA series controller features protection functions limited to charging current and power, as well as automatic high-temperature power operation; these protections ensure system stability even when the rated PV power is exceeded and under high-temperature conditions.
IP32 protection rating and an isolated RS485 communication port further enhance the controller’s reliability across various application requirements. The XTRA series controllers incorporate a three-stage self-adaptive charging algorithm based on a digital control circuit, which effectively extends battery life and significantly improves system performance. It also features comprehensive electronic protection against overcharging, over-discharging, PV and battery reverse polarity, etc., to ensure the sustainability and durability of the off-grid solar system. EpSolar is a company offering high-quality, reliable and durable products
• Advanced MPPT technology and ultra-fast tracking speed are guaranteed up to 99.5%
• Maximum transfer efficiency is up to 98%, maximum load transfer efficiency is up to 97.4%
• Wide MPP operating voltage range
• Low-temperature protection and auto-activation function for lithium battery charging
• Power and charging current limiting beyond the rated range
• Real-time energy statistics function
• Multi-load operating modes
• Full electronic protection
• Compatible with lead-acid and lithium-ion batteries
• Protection against overheating and power degradation at higher temperatures

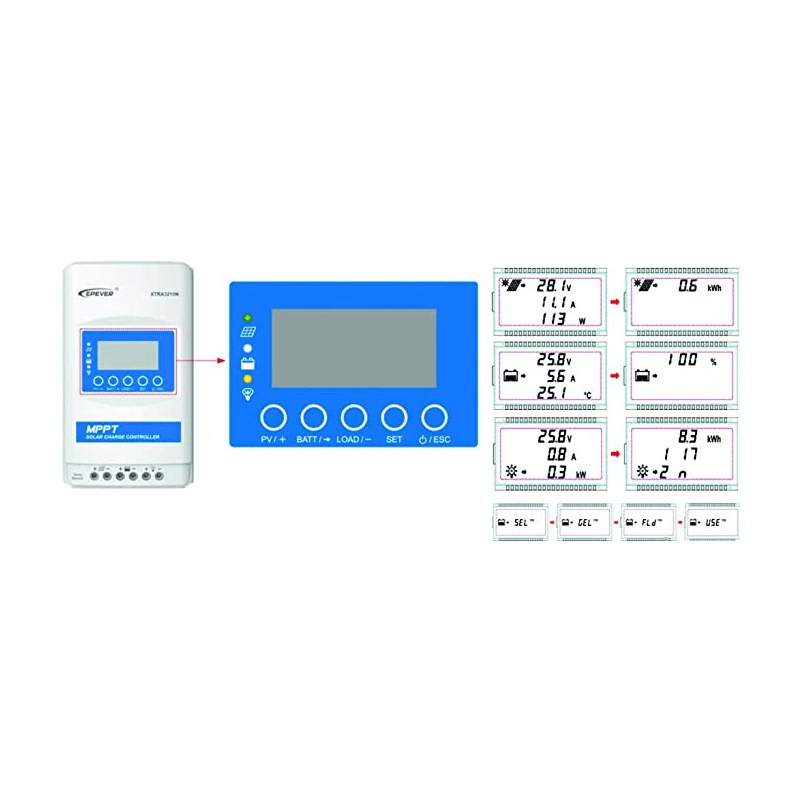

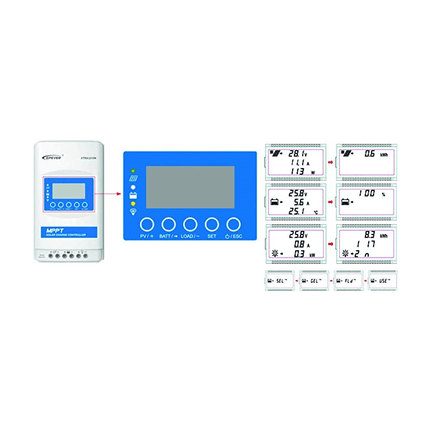

• Optional LCD display units (XDB1/XDS1/XDS2) and accessories
• High-quality components with low failure rates from ST or IR to ensure long service life
• Isolated RS485 communication port with 5V/200mA protected output, using standard Modbus protocol
• Monitoring and parameter setting via app or PC software
• Dust-proof and waterproof design with IP32 protection rating
• CE certification (LVD IEC 62109, EMC EN 61000-3-1)
