Description

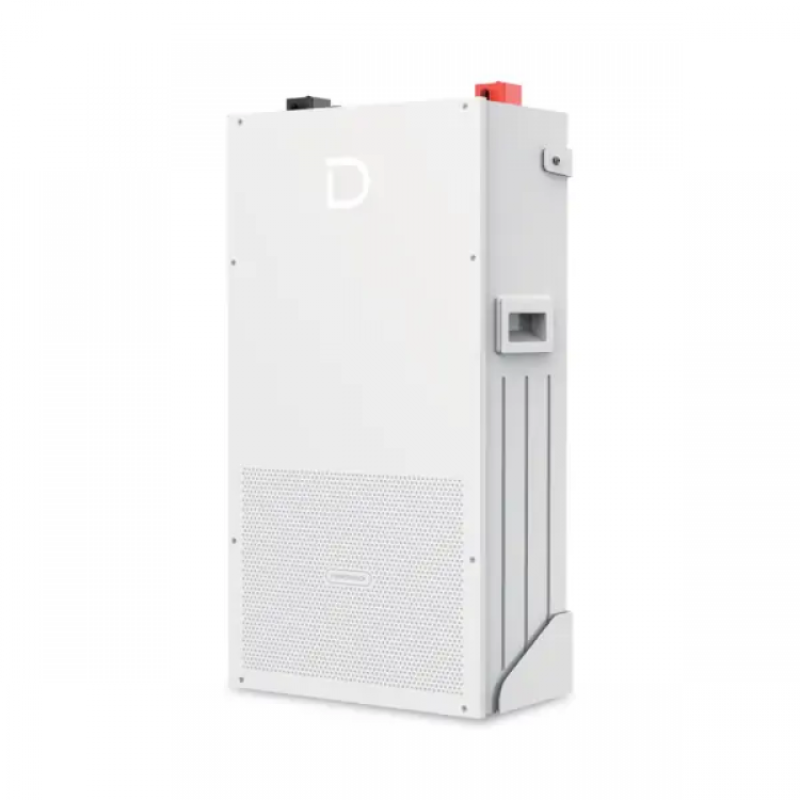

The DYNESS PowerBrick is an advanced battery module featuring LiFePO4 technology, designed for applications requiring high energy storage capacity and long-term reliability. With a modular design, high performance and impressive scalability (up to 716.8kWh without HUB), this battery is ideal for residential, commercial or industrial photovoltaic systems.
Key technical specifications:
-
Battery type: LiFePO4 (Lithium Iron Phosphate)
-
Nominal energy: 14.33kWh
-
Nominal voltage and capacity: 51.2V / 280Ah
-
Recommended charge/discharge current: 140A (0.5C)
-
Maximum charge/discharge current: 200A
-
Continuous discharge power: up to 10kW
-
Depth of discharge (DoD): 95%
-
Communication: CAN / RS485
-
Cycle life: Unlimited / 10-year warranty
-
Protection: IP20
-
Weight: 114 kg
-
Dimensions (L x W x H): 435 x 233 x 867 mm (without wall bracket)
-
Maximum number of parallel modules: 50
-
Operating temperature (charging): 0 ~ 55°C
-
Operating temperature (discharge): -20 ~ 55°C
-
WiFi module: Integrated – with OTA APP functions
-
Fire suppression system: Optional – aerosol system
-
Certifications: UN38.3, CE
-
Inverter compatibility: SMA, Victron, Ingeteam, Deye, Solis, Goodwe, Voltronic, Sungrow, etc.
Consistent performance and compact design
Compared to the previous generation, the DYNESS PowerBrick has a 24% smaller footprint and 40% greater capacity, whilst maintaining a robust and reliable build. Its vertical, modular design makes it easy to integrate into any technical space.
Advanced safety and unlimited scalability
With an optional fire suppression system (aerosol) and an impressive number of unlimited life cycles (under warranty), the DYNESS PowerBrick can be scaled up to 716.8 kWh without requiring an additional HUB.
