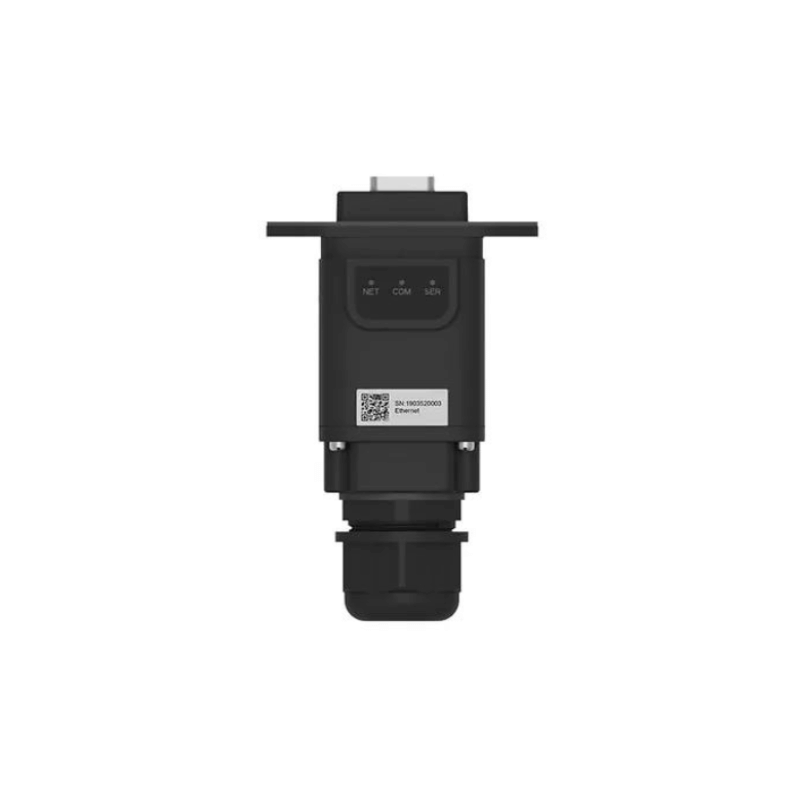

Deye LSE-4WA5252 is a Stick Logger communication module designed for remote monitoring and management of compatible Deye inverters. The device uses an Ethernet connection to transmit data to the Deye Cloud platform, allowing users to monitor photovoltaic system operation and energy production.
The logger connects to the inverter via the RS232 interface and is powered directly by the inverter, without requiring an external power supply. Its Plug & Play design simplifies installation, while the external mounting design allows quick replacement without complex intervention on the inverter.
Monitoring via Deye Cloud
Through integration with the Deye Cloud platform, users can remotely monitor the information transmitted by the inverter and the performance of the photovoltaic system.
The logger periodically collects operating data and sends it to the monitoring platform, making photovoltaic system management easier and helping identify potential issues more quickly.
Ethernet Connectivity
The LSE-4WA5252 model uses an Ethernet network connection to communicate with the server. This solution is particularly suitable for installations where a wired network connection is available and stable communication between the inverter and the monitoring platform is preferred.
Configuration and Maintenance
The device can be configured via:
- AT+ commands;
- local web interface;
- remote server;
- Bluetooth for local configuration and troubleshooting.
The firmware can be updated both locally through the web interface and remotely.
Thanks to Ethernet communication and integration with the Deye ecosystem, the LSE-4WA5252 is a practical solution for monitoring photovoltaic systems in locations where a wired network connection is preferred.
Important: logger compatibility with the inverter model must be verified before purchase and installation.
Installation and configuration of the equipment must be carried out by qualified personnel.
``` ```
| Manufacturer |
Deye |
| Model |
LSE-4WA5252 |
| Product Type |
Stick Logger / inverter monitoring module |
| Remote Communication Interface |
Ethernet |
| Data Interface |
RS232 |
| Bluetooth |
Yes |
| Operating Voltage |
DC 5–12 V |
| Power Consumption |
1.5 W |
| Memory |
4 MB Flash |
| Serial Communication Baud Rate |
Default 9600 bps, adjustable from 1200 to 57600 bps |
| Data Collection Interval |
Default 5 minutes |
| User Configuration |
AT+ commands, local web interface, remote server, Bluetooth |
| Firmware Update |
Local update via web interface / remote update |
| Operating Temperature |
-30°C to +70°C |
| Operating Humidity |
10%–90% RH, non-condensing |
| Number of Connections |
1 |
| Protection Rating |
IP65 |
| Monitoring Platform |
Deye Cloud |
| External Power Supply Required |
No |
| Additional Functions |
Real-time control, data transmission recovery after communication interruption |
