Description

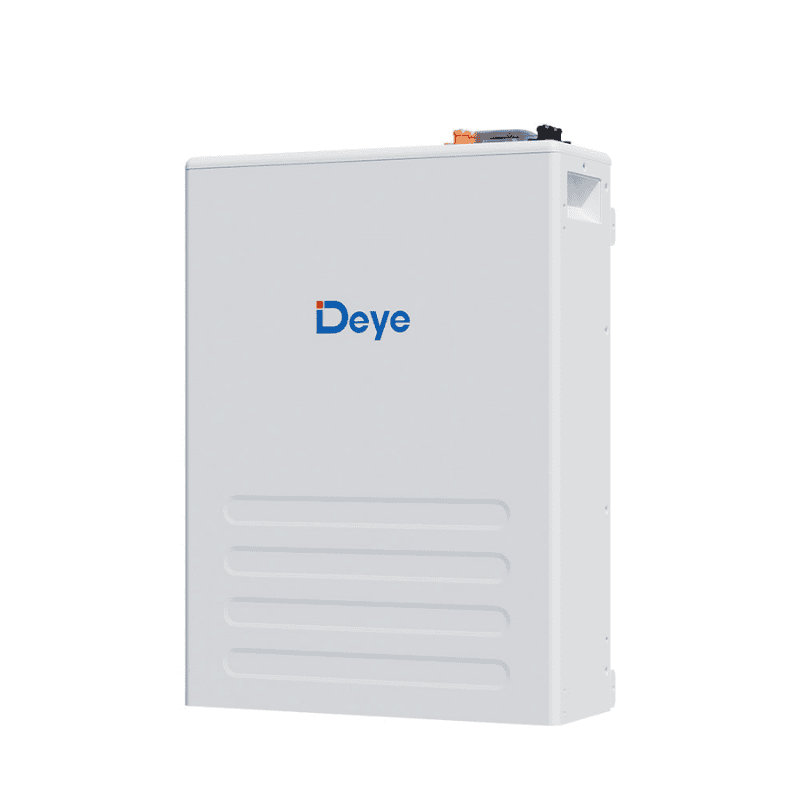

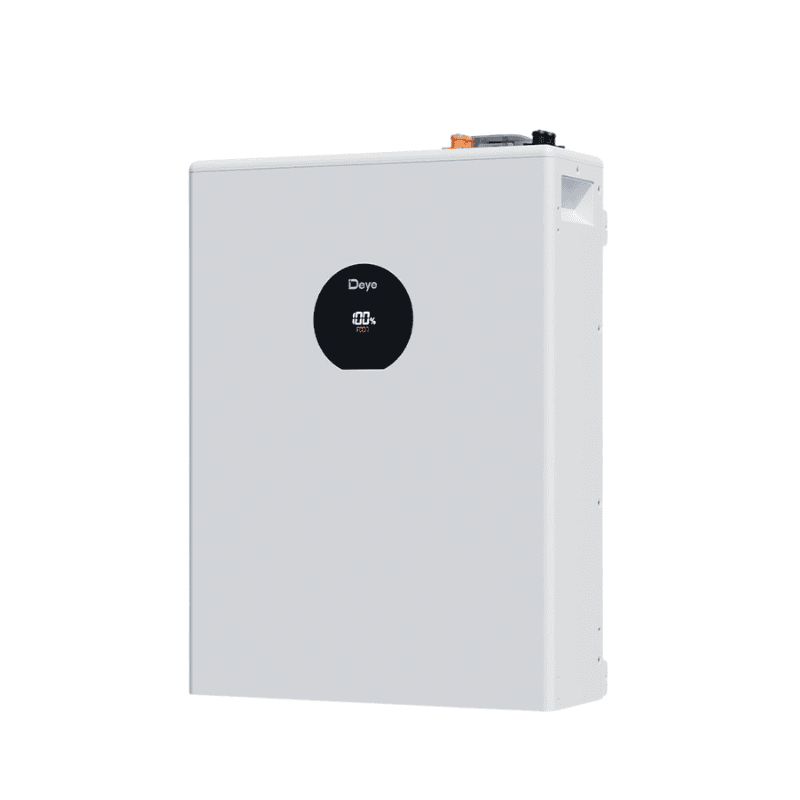

The Deye SE-F5 Pro-C 5.12kWh LiFePO4 battery is a modern and reliable energy storage solution for small to medium-sized residential or commercial photovoltaic systems. Designed for high performance and long-term durability, this battery utilises LiFePO4 (Lithium Iron Phosphate) technology, renowned for its safety, thermal stability and extended cycle life.
With a capacity of 5.12 kWh and 100Ah, the battery offers efficient energy utilisation thanks to a depth of discharge of up to 90%, allowing for maximum use of stored energy. The integrated intelligent BMS constantly monitors the battery parameters and provides protection against overvoltage, overcurrent or extreme temperatures.
The Deye SE-F5 Pro-C battery is designed for flexibility and scalability, with up to 32 units able to be connected in parallel, making it ideal for both residential systems and commercial applications or off-grid systems.
Its robust design, lifespan of over 6,000 cycles and international safety certifications make this model a safe choice for modern photovoltaic projects.
Advantages of the Deye SE-F5 Pro-C battery
High discharge power – up to 100A continuous and 150A maximum, for loads with high energy requirements.
Optimised usable capacity – 5.12 kWh nominal energy with a 90% depth of discharge.
High scalability – up to 32 batteries can be connected in parallel for larger storage systems.
Advanced safety – integrated smart BMS and international certifications for comprehensive protection.
Extended lifespan – over 6,000 charge/discharge cycles for long-term use.
Simple installation – compatible with modern photovoltaic systems and smart monitoring.
| General information |
| Model |
SE-F5 Pro |
| Battery chemistry |
LiFePO4 (Lithium Iron Phosphate) |
| Capacity |
100 Ah |
| Scalability |
Max. 32 units in parallel |
| Electrical data |
| Nominal voltage |
51.2 V |
| Operating voltage |
44.8 V – 57.6 V |
| Rated power |
5.12 kWh |
| Physical data |
| Approximate weight |
44 kg |
| Dimensions (W × H × D) |
547 × 404 × 141 mm |
| Certifications and safety |
| Certifications |
UN38.3, MSDS, CE, CB, VDE2510-50, CEC |
