The DEYE BOS-G PRO battery pack , 61.44kWh, manufactured by V-TAC, is a professional energy storage solution designed for high-power photovoltaic systems and advanced industrial, commercial and residential applications. It utilises LiFePO₄ technology, renowned for its stability, safety and extended lifespan (over 6,000 cycles at 70% SOH).

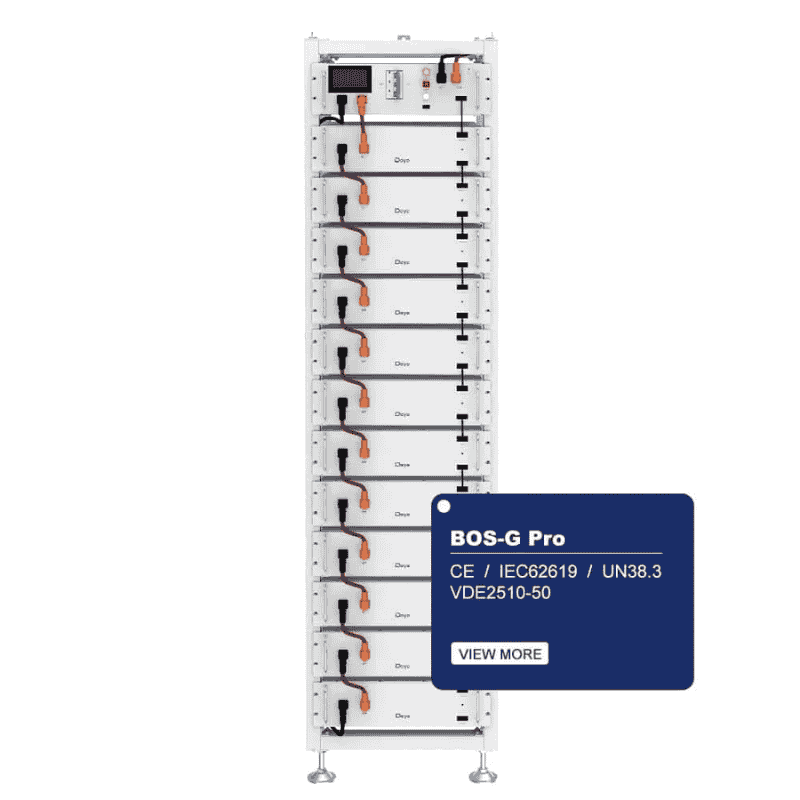

The system consists of 12 BOS-G60 PRO modules, configured in series, together with the PDU control unit, offering a total system energy of 61.44 kWh and a usable energy of 55.3 kWh, in accordance with DEYE standards.
Key features
Advanced LiFePO₄ technology
-
High thermal stability, maximum safety
-
Long service life: >6000 cycles (at 25°C, 0.5C)
Electrical parameters
-
Module energy: 5.12 kWh
-
Number of modules: 12
-
Total system energy: 61.44 kWh
-
Usable energy: 55.3 kWh
-
Nominal system voltage: 614.4 V
-
Operating voltage range: 528–700.8 V
-
Rated current: 100 A
-
Peak discharge current (2 min at 25°C): 125 A
-
DC power: 61.44 kW
Operating temperatures
Environmental parameters
Communication & Integration
Safety and certifications
-
International certifications: UN38.3 / CE / CE-EMC / IEC6240 / CEC / VDE
-
Metal housing, robust design
-
Complies with European standards for HV racks
Dimensions & Installation
Ideal for:
Major benefits
-
Scalable and modular system
-
High efficiency and minimal losses
-
Extended service life
-
Excellent compatibility with DEYE inverters
-
Stability and safety in operation
