Description
The Deye BOS-A HVB 800V/160A-EU control module (BOS-A-PDU-2) is the central management unit for high-voltage (HV) energy storage systems in the Deye BOS-A / V-TAC BOS-A range. It provides communication, protection, coordination and control of battery modules in a rack configuration, managing both charging/discharging and real-time monitoring of the system.
With an operating range of 200–1000 Vdc, a maximum charge/discharge current of 160 A, IP20 protection and intelligent communication ports, the module is ideal for industrial, commercial and residential applications with high performance requirements.
Electrical parameters
-
Operating voltage: 200–1000 Vdc
-
Maximum charge/discharge current: 160A
-
DC input rating: 12–29 V DC / 4.15 A
Operating temperatures
-
Operating: –20°C … 65°C
-
Protection: IP20
Dimensions & weight
Interface and signalling
The module includes a comprehensive interface for monitoring and control:
-
Display screen: shows SOC, warnings and status codes
-
START: internal 12V switch for system start-up
-
HV light indicator: high voltage indicator (yellow)
-
ALARM indicator: battery system error warning (red)

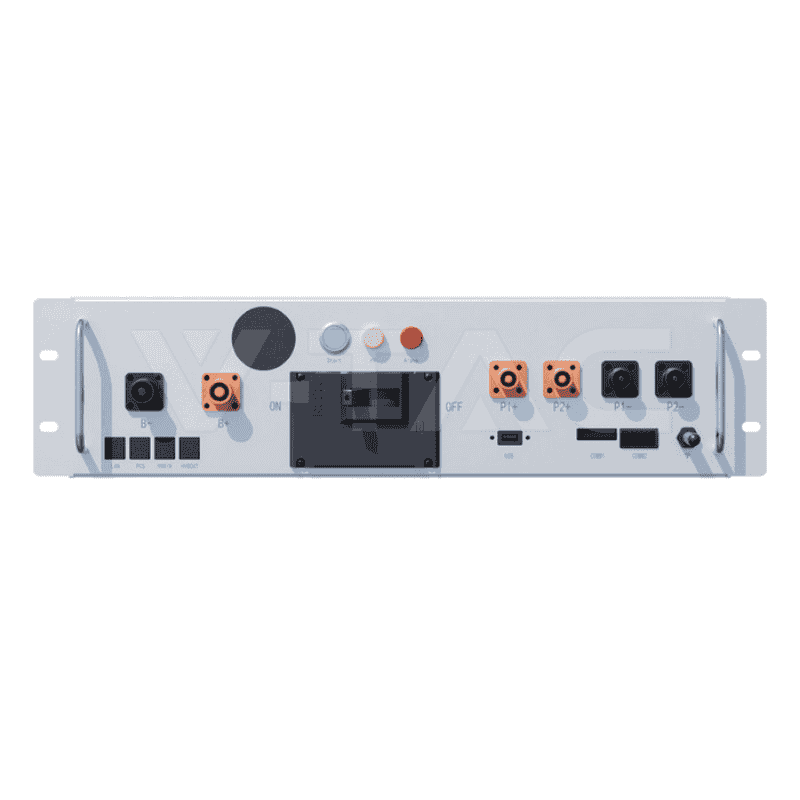

Ports and connections
Battery connections:
PCS connections:
Communication & power supply:
-
COMM1 – communication + external 12V power supply
-
COMM2 – additional communication
-
USB – software upgrade / storage port
-
Bluetooth – mobile app connection for ESS monitoring (APP)
-
Ethernet – reserved for future functions
Daisy-chain ports for multi-rack systems
Functions and safety
-
SOC monitoring and battery status
-
Quick fault identification via codes on the display
-
Surge protection
-
Full control for HV systems up to 1000Vdc
-
Quick integration into BOS-A racks
Recommended applications
-
HV hybrid photovoltaic systems
-
Commercial and industrial infrastructure
-
Large backup systems
-
Multi-battery configurations with BOS-A racks
-
Suitable for V-TAC and DEYE HV systems
