Description
V-TAC BOS-A160 Energy Storage System, 161.28 kWh, 806.4 V, LiFePO4
A complete solution for industrial and commercial applications and high-power photovoltaic projects, the V-TAC BOS-A160 offers an impressive capacity of 161.28 kWh, based on 21 LiFePO4 modules of 7.68 kWh each. Built for performance and safety, this rack-mounted battery system is ideal for logistics centres, factories, off-grid systems, smart buildings or microgrids.
Thanks to LiFePO4 technology (200 Ah), the system ensures a long service life, a 90% depth of discharge, as well as superior thermal and electrical stability. Equipped with an intelligent BMS, it allows for real-time control and monitoring of parameters, ensuring cell balancing and complete system protection.

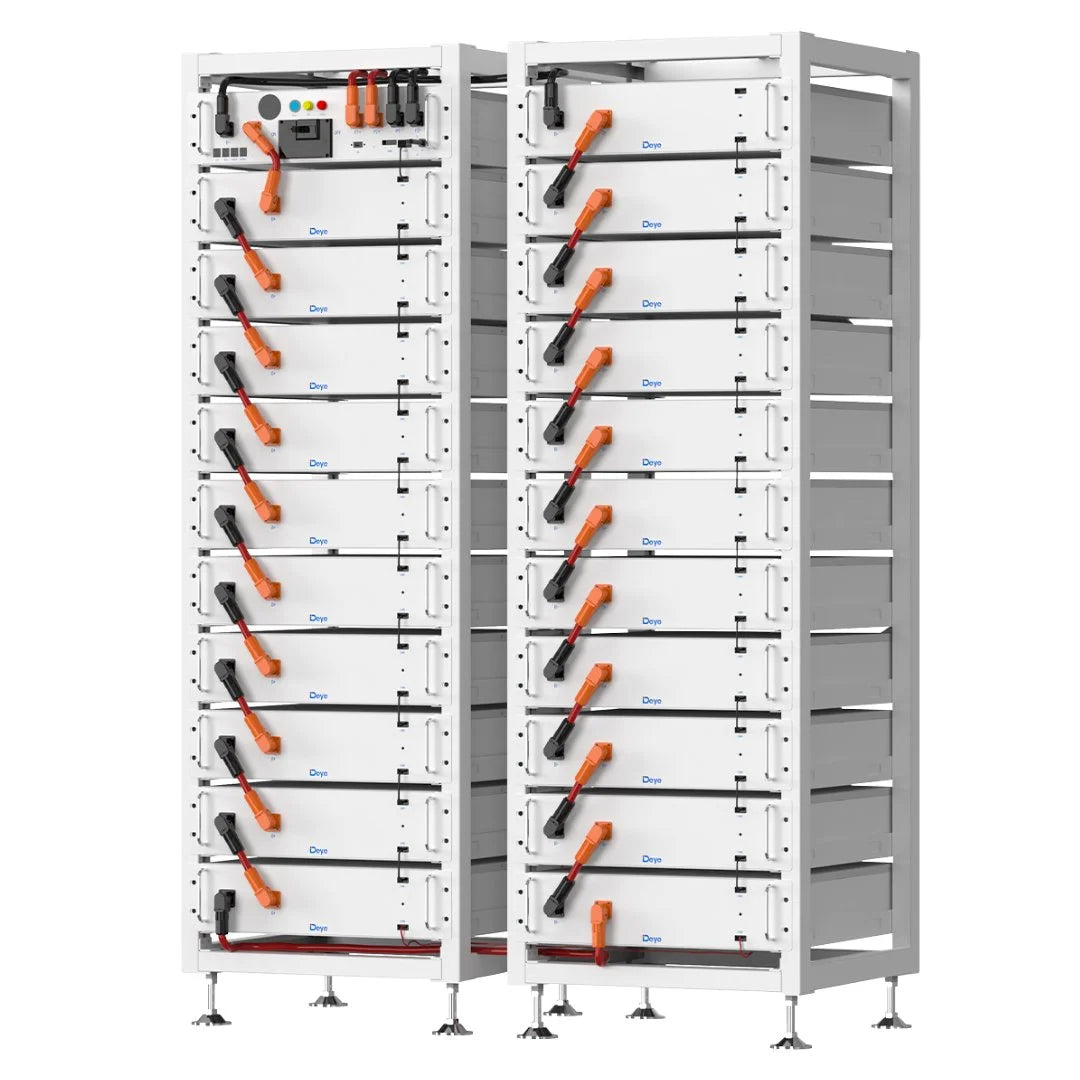

Installation is rack-mounted in a compact double-sided structure (610 × 610 × 1900 mm × 2), and energy management is optimised for hybrid and off-grid applications. The product comes with an extended 10-year warranty and complies with the strictest safety and performance standards.
Technical Specifications
General Information
Electrical data
-
Nominal charging/discharging current: 160 A
-
Nominal DC power: 129.02 kW
-
Nominal system voltage: 806.4 V
-
Discharge depth: 90%
Enclosure details
Operating conditions
Dimensions and weight
Key benefits
-
High capacity – ideal for industrial and commercial applications
-
Safe and stable LiFePO4 technology
-
Intelligent BMS with real-time monitoring
-
High depth of discharge (90%)
-
Modular, rack-mounted installation
-
Long service life and high efficiency
