Description

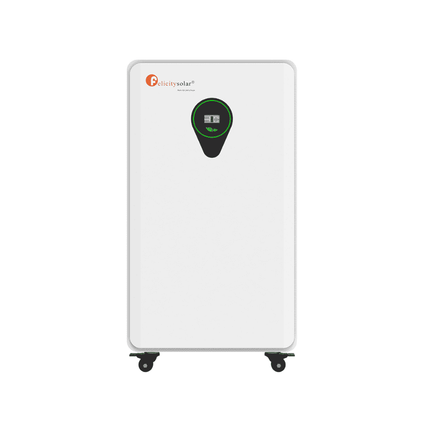

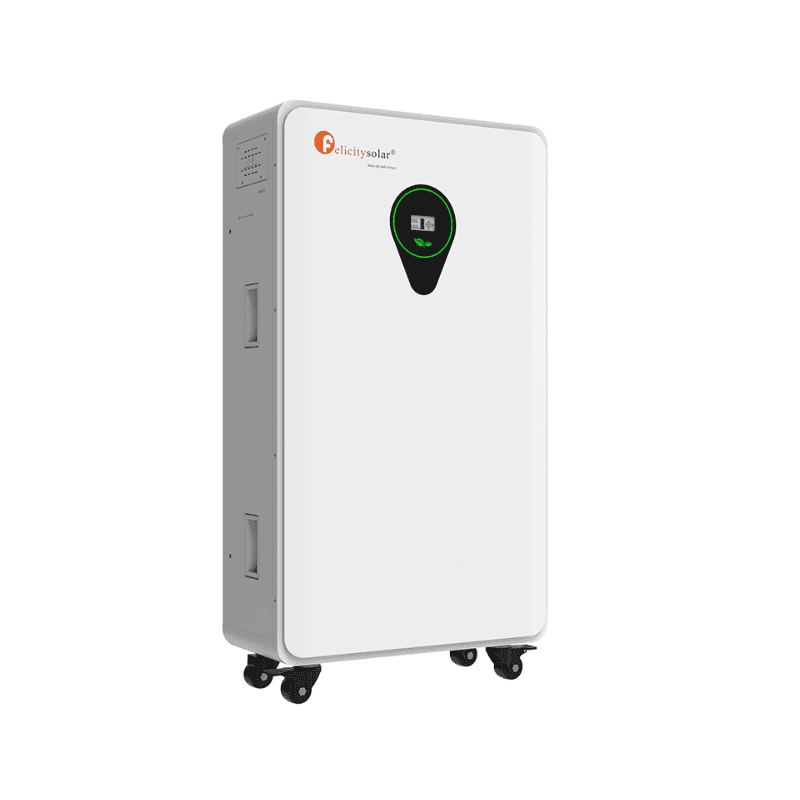

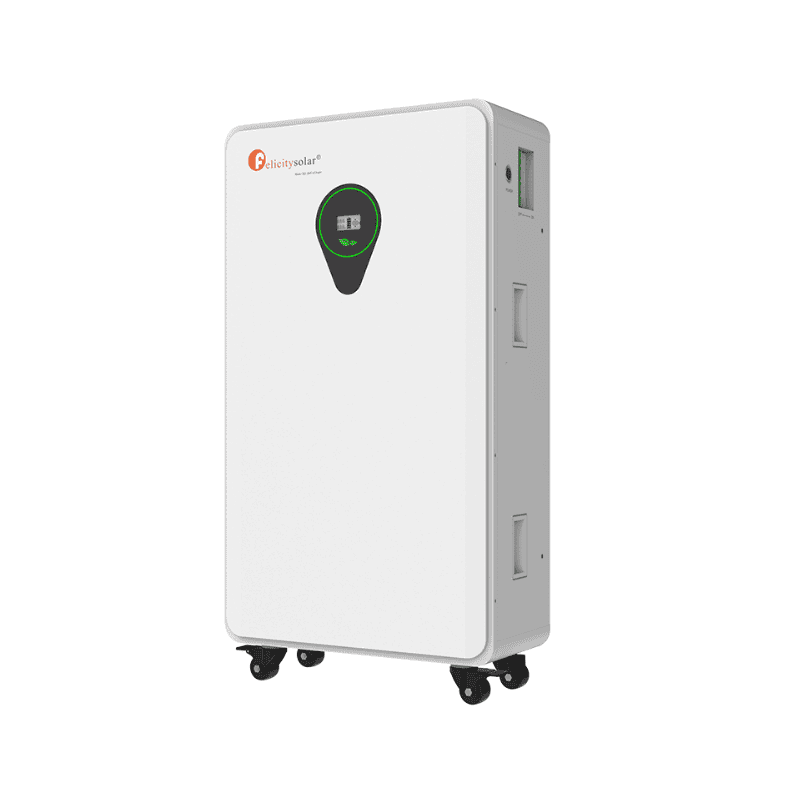

The FLA48460TG2-EU battery from Felicity Solar is a modern energy storage solution based on LiFePO4 (lithium iron phosphate) technology, designed for residential and commercial applications where reliability, safety and efficiency are essential.
With a capacity of 23.5kWh and a nominal voltage of 51.2V, this battery offers high autonomy and stable operation in any type of photovoltaic system. Its compact, floor-mounted design makes it easy to integrate into technical or commercial spaces.
Extended performance and flexibility
The system allows up to 15 units to be connected in parallel, achieving a total capacity of 352.5kWh, ideal for high-consumption applications or future expansion.
Thanks to the integrated smart BMS, the battery constantly monitors critical parameters such as voltage, temperature and current, ensuring safe and optimal operation in all conditions.
Smart control and high compatibility
The battery is compatible with most leading inverters and supports RS485 / CAN communication protocols, facilitating integration into existing systems.
Monitoring can be carried out remotely via a dedicated app, offering complete control over energy consumption and storage.
Advanced safety
The FLA48460TG2-EU is equipped with:
- multiple integrated protections (BMS, fuse, circuit breaker)
- aerosol fire protection module
- durable and safe design for long-term use
Key benefits
✔ High capacity: 23.5kWh
✔ Scalable up to 352.5kWh
✔ Lifespan ≥ 6,000 cycles
✔ Integrated smart BMS
✔ Remote monitoring via app
✔ Compatible with popular inverters
✔ Simple installation – floor-mounted
✔ High safety (fire protection included)
| Category |
Specification |
| General Information |
| Model |
FLA48460TG2-EU |
| Battery type |
LiFePO4 |
| Performance |
| Nominal capacity |
23.5 kWh |
| Nominal voltage |
51.2V |
| Operating voltage |
44.8 – 57.6V |
| Max. continuous current |
250A |
| Peak current |
500A (15s) |
| Max. power |
12,500W |
| Lifespan |
| Life cycles |
≥6,000 |
| Discharge depth |
≥95% |
| System & Communication |
| Communication |
RS485 / CAN |
| Display |
LCD + LED |
| Operating conditions |
| Operating temperature |
0°C ~ +55°C |
| Discharge temperature |
-20°C ~ +55°C |
| Protection rating |
IP21 |
| Installation & Dimensions |
| Mounting |
On the floor |
| Dimensions |
570 x 250 x 980 mm |
| Weight |
186.5 kg |
| Other |
| Scalability |
Max. 15 units (352.5 kWh) |
| Warranty |
10 years |
