Description

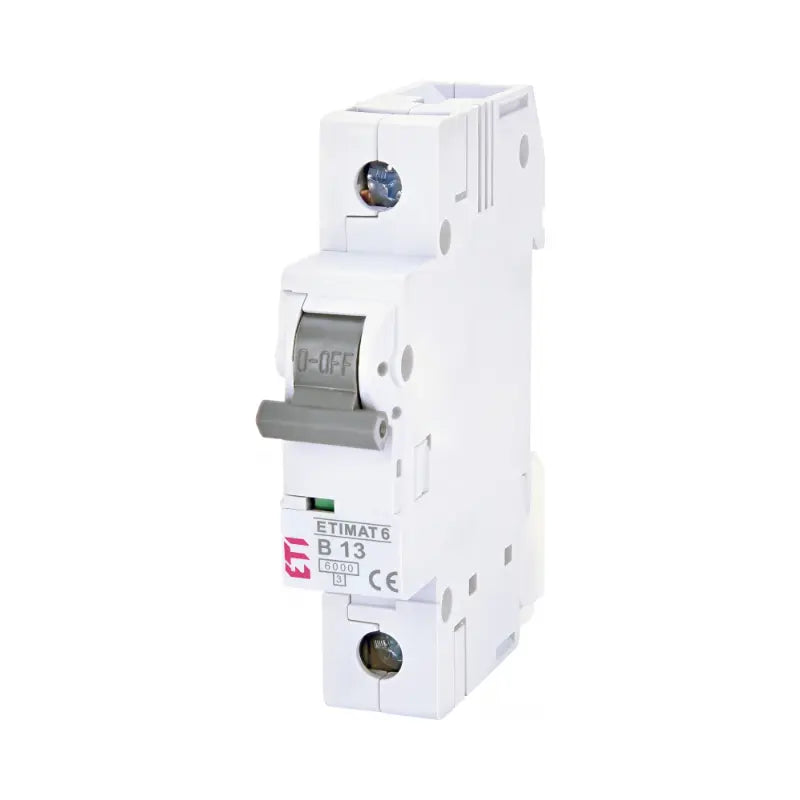

The ETIMAT 6 automatic circuit breaker from ETI is designed to provide effective protection for electrical circuits against overloads and short circuits. With a breaking capacity of 6kA and a Type B tripping characteristic, this device ensures fast and reliable protection in residential and commercial applications.
Technical specifications:
-
Product code: 002111515
-
Rated current: 13 A
-
Tripping characteristic: B
-
Number of poles: 1P
-
Rated voltage: 230/400 V AC
-
Rated frequency: 50/60 Hz
-
Breaking capacity: 6 kA
-
Rated insulation voltage (Ui): 500 V
-
Rated impulse withstand voltage (Uimp): 6 kV
-
Protection rating: IP20
-
Mounting: on 35 mm DIN rail (1 module)
-
Dimensions (width x height x depth): 18 x 85 x 73 mm
-
Weight: 0.103 kg
-
Conductor cross-section: 1…25 mm²
-
Standard: EN/IEC 60898-1, 60947-2
Advantages:
-
Reliable protection: ensures rapid disconnection in the event of an overload or short circuit.
-
Compact design: takes up minimal space in the switchboard.
-
Easy installation: mounting on standard DIN rail.
-
Durability: robust construction, compliant with international standards.
This automatic circuit breaker is ideal for protecting single-phase circuits in residential and commercial electrical installations, offering safety and reliability in operation.
