Description

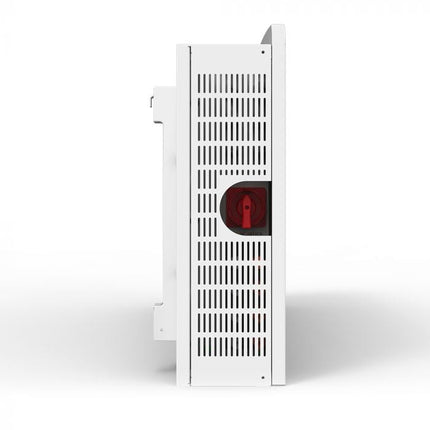

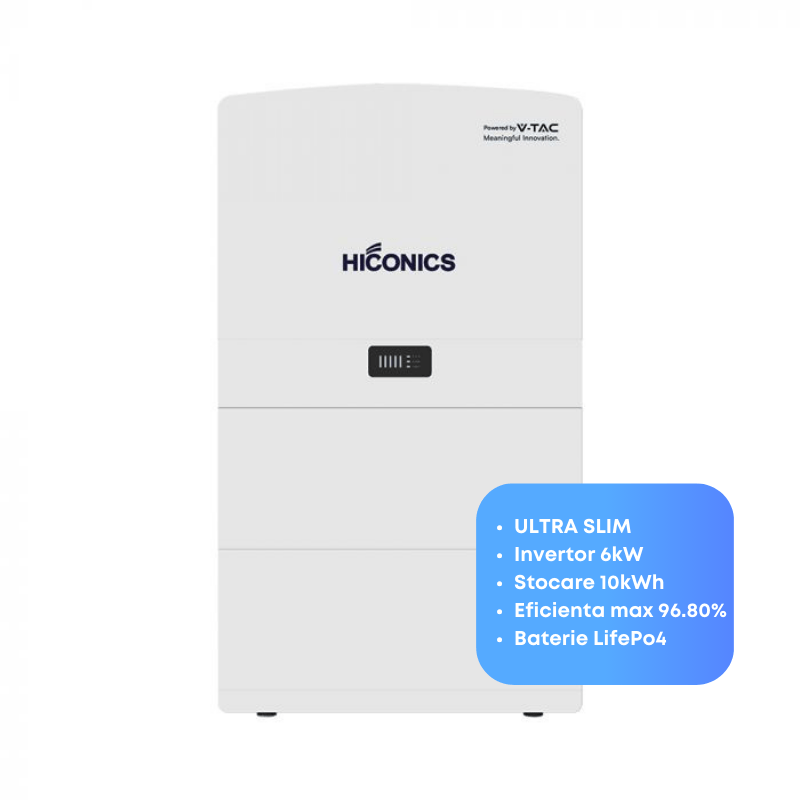

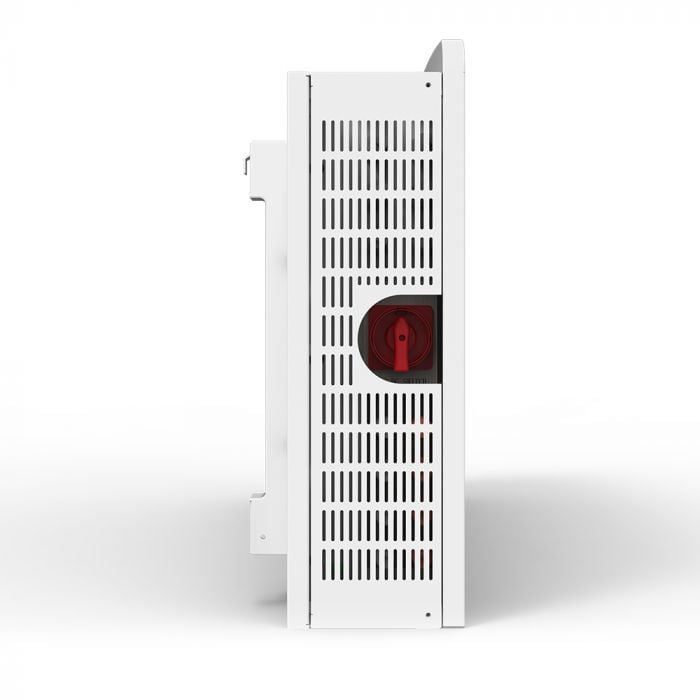

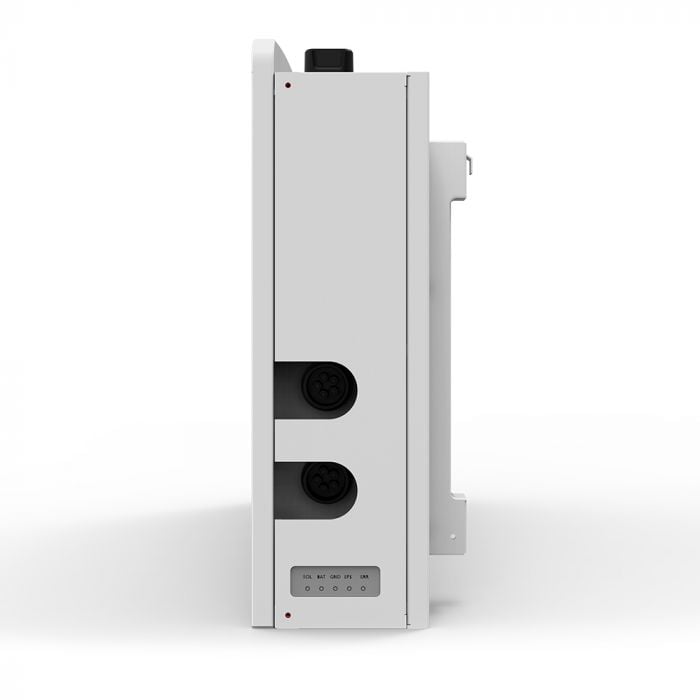

The Hiconics 6kW inverter + 10kWh storage system, model HEC2-S6.0Hr2, is a high-performance solution for efficient electricity management, suitable for both residential and commercial use. This all-in-one system is ideal for those who wish to reduce their dependence on the grid and ensure a reliable and sustainable energy supply.
Key Features:
-
All-in-One Design: The system includes a 6kW single-phase hybrid inverter and a 10kWh high-voltage battery, offering a compact and efficient solution for energy storage and management.
-
Easy Control: The system can be easily managed via a mobile app, PC interface or touchscreen display, offering maximum flexibility to users.
-
Smart Applications: Advanced features such as load management, peak shaving and AC coupling optimise energy usage and reduce costs.
-
Safe and Efficient Battery: The LiFePO4 battery is designed for a long service life and high performance, with a cycle life of 6,000 cycles.
-
Quick Installation: The modular design allows for quick and efficient installation, without the need for additional cables or fixing screws.
-
Uninterrupted Power Supply: A fast switching time of just 4 ms ensures a stable and safe power supply even during power cuts.
Technical Specifications:
-
Rated Output Power / UPS Power: 6000 W
-
AC output frequency and voltage: 50 Hz; 230 VAC (single-phase)
-
Battery operating voltage: 225–400 V
-
Enclosure IP rating: IP65, ensuring maximum protection against dust and water
-
System certifications: IEC62619, IEC60730, CE, VDE2510-50, IEC 0-21
-
Maximum efficiency: 97.6% (PV-BAT), 96.0% (BAT-AC)
-
Warranty: 10 years
Installation:
The Hiconics 6kW Inverter + 10kWh Storage system is designed to facilitate quick and efficient installation. Its modular and stackable design allows for direct floor mounting, eliminating the need for additional cables or fixing screws. This simplifies the installation process and reduces the time required for implementation.
Benefits:
This Hiconics All-in-One energy storage system is ideal for those who wish to optimise energy consumption, reduce grid dependency and ensure a reliable energy supply. Its advanced features, easy installation and user-friendly control options make this system a top-of-the-range solution on the market. By investing in the Hiconics All-in-One energy storage system, you will take control of your energy future, ensuring a stable and efficient energy supply.
Further details:
-
Operating temperature: -20°C to 55°C, with an integrated internal temperature control system.
-
Depth of discharge (DoD): 90%
-
User interface: LED, mobile app
-
Communication methods: RS485/CAN, Wi-Fi
-
Noise level: <40 dB
-
Dimensions: 800 x 450 x 160 mm
-
Weight: 34 kg
-
Certifications: EN50549-1 , G99, G98, CEI021, VDE4105, AS4777.2
