Description

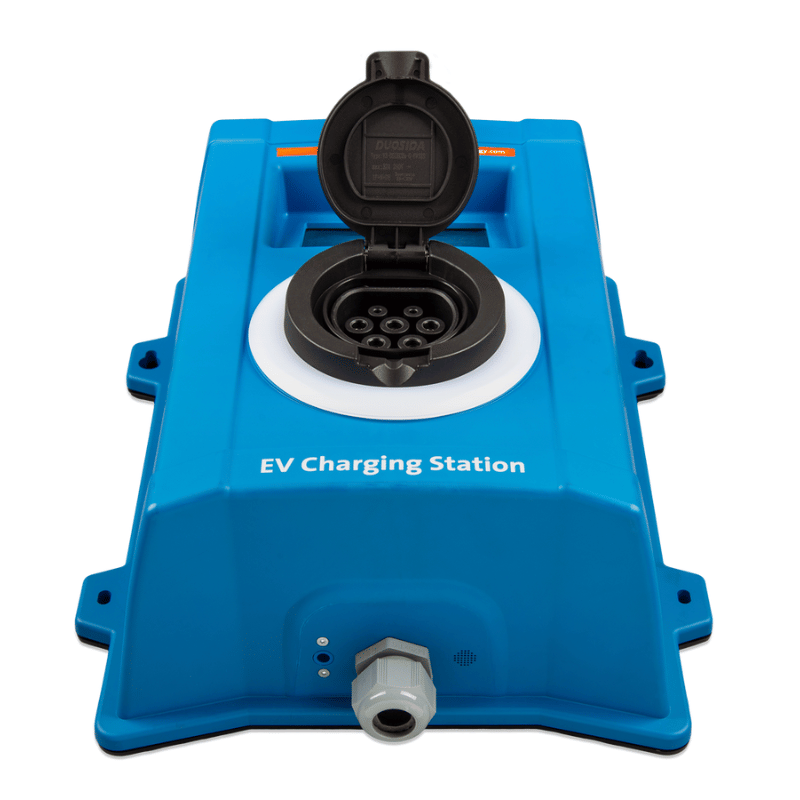

High-power electric vehicle charging station
The EV Charging Station has three-phase and single-phase capabilities. It supplies a maximum of
22 kW in three-phase operation or 7.3 kW in single-phase operation.
WiFi communication
WiFi: 802.11 b/g/n for configuration, monitoring and control. The internal WiFi module can be configured in Access Point mode or Station mode
for both initial configuration and monitoring.
Easy operation and control via Bluetooth and the VictronConnect app
Get complete control and an overview of all operating parameters and session statistics at a glance.
Touchscreen LCD
Built-in 4.3-inch LCD touchscreen for monitoring and control.
Light ring for quick device status view
Fully programmable RGB light ring around the charging port, for quick determination of the device’s status. Can be programmed via
the integrated web interface to display different lighting effects depending on the current status (off, charging, charged, etc.).
Three operating modes available:
1. Manual mode for configuring the output current
Manual mode allows an output current to be set between 6 and 32 A. The charging power is controlled in two
ways: using the slider on the LCD touchscreen or via the web page. It allows manual start or stop
the charging process when a vehicle is connected to the charging station.
2. Automatic mode to ensure maximum efficiency of the photovoltaic system
It detects when excess power is available and uses only the power required to
charging the vehicle.
3. Scheduled mode for charging an electric vehicle at specific times
A fully programmable controller allows charging at different times, such as specific hours
the night, when grid energy is cheaper.
Integration with GX and VRM devices
Control and monitor the EV Charging Station via the GX device’s touchscreen, the remote console and the VRM portal. The VRM portal
provides real-time and customised reports for configurable time periods.
