Description

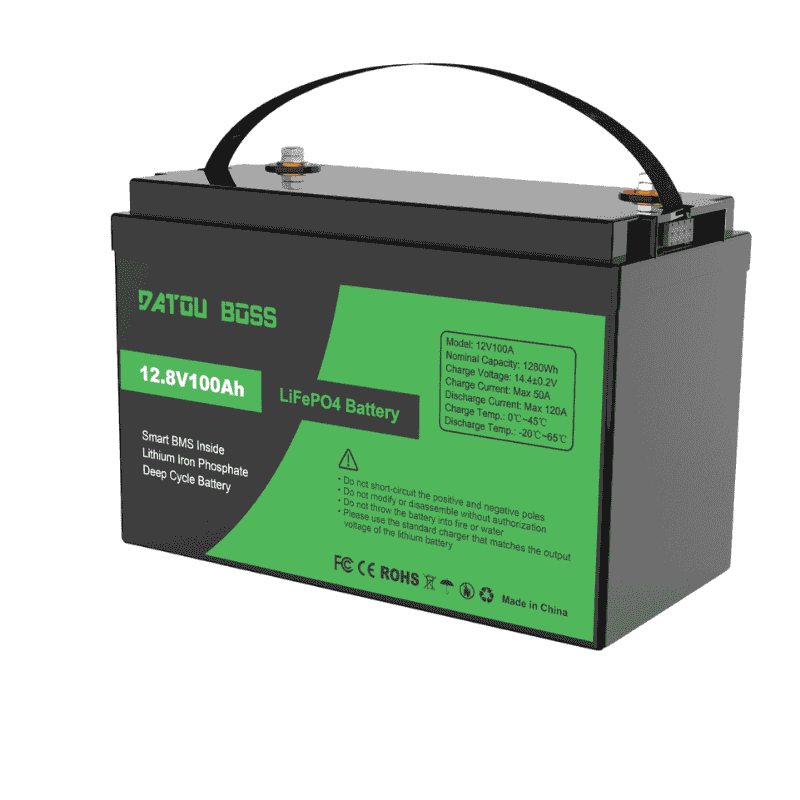

The 12V 100Ah LiFePO4 battery – DATB12100 is a modern, safe and highly efficient solution for solar applications, off-grid systems, caravans, boats, UPS systems and portable equipment. It utilises lithium iron phosphate chemistry, renowned for its superior thermal stability, long service life and excellent safety.
With a capacity of 1280Wh and an integrated smart BMS, the battery offers high charge/discharge currents, stable performance over time and complete cell protection.
It is ideal for users who want a reliable, maintenance-free battery with a significantly longer lifespan than AGM or GEL batteries.
Key benefits
-
Over 6,000 cycles at 80% DoD – long service life
-
Very safe LiFePO4 chemistry – zero risk of explosion, high thermal stability
-
High discharge current: 120A
-
High charging current: 50A
-
High efficiency: 95% during charging and 90% during discharging
-
Low weight: much lighter than lead-acid batteries
-
Maintenance-free – no need for topping up with water or regular servicing
-
Operates in extreme temperatures: -20°C to +65°C
-
Perfect for off-grid solar systems thanks to its stability and high cycle life
Recommended applications
-
Off-grid / hybrid photovoltaic systems
-
Caravans, motorhomes, campers
-
Boats, marine systems
-
UPS and backup systems for homes or businesses
-
Telecommunications systems
-
Portable equipment, camping
-
Light electric vehicles
Technical data – DATB12100
| Specification |
Value |
| Nominal voltage |
12V – 12.8V |
| Nominal capacity |
100Ah |
| Total energy |
1280Wh |
| Chemistry |
LiFePO4 |
| Cycle life |
6000 cycles |
| Maximum charging current |
50A |
| Maximum discharge current |
120A |
| Charging voltage |
14.4V ±0.2V |
| Charging temperature |
0°C – 45°C |
| Operating temperature |
-20°C – 65°C |
| Charging efficiency |
95% |
| Discharge efficiency |
90% |
| Cell material |
LiFePO4 |
| Weight |
11.8 kg |
| Dimensions |
33 × 17.4 × 21.5 cm |
| Integrated BMS |
Yes |
| Battery type |
Solid-state |
| Brand |
DATUBOSS |
| Model |
DT12-100 |
User benefits
-
Low consumption and maximum efficiency in solar systems
-
Longer service life per cycle
-
Stability and safety for sensitive equipment
-
A sustainable long-term investment
