10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The 7-inch touchscreen provides an instant overview of the system and allows you to adjust settings quickly. The touchscreen function can be enabled or disabled via a button discreetly located on the back, preventing unauthorised use. When mounted using the included steel bracket, the display becomes waterproof. Compared to the combination of the Cerbo GX and GX Touch 70, the Victron Ekrano GX offers an attractive package in terms of price as well.
Communication hub
This GX communication hub allows you to maintain complete control over the system, wherever you are, and to optimise its performance. You can access the system either via the Victron Remote Management (VRM) portal, or directly via the integrated touchscreen, a multifunctional display (MFD) or the VictronConnect app.
Wireless sensors, such as those from RUUVI or MOPEKA, can also be monitored via one or more USB Bluetooth adapters.
Remote control via VRM
Monitor, control and configure the Ekrano GX remotely via the internet using Remote Console, just as if you were standing in front of the device. The same functionality is also available on the local LAN or via the Ekrano GX’s WLAN access point.
Comprehensive monitoring and control
Instantly monitor battery charge status, energy consumption, energy production from solar panels, the generator or the grid, as well as tank levels and temperature readings. Easily control current limits for shore power, automatically start or stop generators, and adjust any settings to optimise system performance. You can also monitor alerts remotely, perform diagnostics and troubleshoot issues.
Easy installation and configuration
The Ekrano GX is very easy to install, thanks to the combination of a computer and touchscreen in a single unit. The integrated touchscreen is waterproof, allowing for outdoor mounting. The Bluetooth function facilitates quick configuration via the VictronConnect app, available for Android, iOS, Windows and Mac OS.
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The Victron Cerbo GX MK2 is an advanced communications hub that allows you to fully control and maximise the performance of your system wherever you are. It can connect via Bluetooth to the VictronConnect app or via Wi-Fi using the VRM portal, offering intuitive monitoring and control for all Victron products, such as inverters, MPPT solar chargers, and battery monitors.
Differences from the Cerbo GX:
Two fully functional VE.Can ports (isolated), compared to a single VE.Can port and one BMS-Can port on previous models.
All three USB ports are fully functional.
The RJ-45 connections are rotated by 180° for easier access.
Digital inputs can count pulses.
Connections and Features:
Bluetooth for connection via the VictronConnect app.
Wi-Fi for access to the VRM portal.
NMEA 2000 output for integration into marine networks.
Remote monitoring and control via the VRM Console, including on local area networks (LAN).
Optimised Performance: The Cerbo GX MK2 maximises the performance of system components in real time, supporting lithium battery management and control of up to 25 VE.Can solar chargers simultaneously. It can monitor 4 tanks, 4 temperature ports and includes multiple communication ports for expanded control.
Ports and Connections:
3 VE.Direct ports, 2 VE.Can ports, 2 BMS-CAN ports, 2 VE.Bus ports, 3 USB ports, Ethernet socket, WiFi, Bluetooth, SD card and inputs for 4 temperature sensors and 4 tank sensors.
Third-party compatibility: The Cerbo GX MK2 can communicate with third-party products using Modbus-TCP protocols and the VRM JSON API.
Easy Installation and Configuration: The Cerbo GX MK2 is easy to install and configure, making it ideal for a variety of power supply applications.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The choice of energy meter depends on the type of installation, the number of phases you wish to measure, and the maximum current per phase. Examples: for a three-phase connection to the utility grid, a three-phase meter is recommended. In the case of a three-phase photovoltaic inverter, a three-phase meter must also be used. If you have a single-phase connection to the utility grid, choose a single-phase meter.
In a system with a single-phase connection and a photovoltaic inverter that requires measurement with an energy meter, you can opt for two ET112 meters or one ET340 meter. If the application exceeds the maximum rated current, it is advisable to use an energy meter with current transformers. Please also note that most photovoltaic inverters are equipped with a “direct reading” function via the Victron system, so it is not necessary to measure their output with an energy meter.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The choice of energy meter depends on the type of installation, the number of phases you wish to measure, and the maximum current per phase. Examples: for a three-phase connection to the utility grid, a three-phase meter is recommended. In the case of a three-phase photovoltaic inverter, a three-phase meter must also be used. If you have a single-phase connection to the utility grid, choose a single-phase meter.
In a system with a single-phase connection and a photovoltaic inverter that requires measurement with an energy meter, you can opt for two ET112 meters or one ET340 meter. If the application exceeds the maximum rated current, it is advisable to use an energy meter with current transformers. Please also note that most photovoltaic inverters are equipped with a “direct reading” function via the Victron system, so it is not necessary to measure their output with an energy meter.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The BMW-702 temperature sensor is an accessory that can be purchased separately for the BMV-702 battery monitoring systems. The BMW-702 temperature sensor is useful for providing information on battery temperature, preventing it from rising excessively (overheating) or, conversely, dropping too low.
This temperature sensor allows the second channel of the BMV 702 to be used for measuring battery temperature instead of monitoring the voltage of an auxiliary battery. The BMV can store temperature readings in its historical data memory. The sensor is not the same as those used in other Victron products, so it can only be used with the BMV702. The sensor is fitted with a short lead that connects to the circuit board on the unit.
Please note that if you use the second channel to read the temperature using this sensor, you cannot use it for anything else, such as reading the voltage of a second battery. It can only be used for a single function, and the channel is user-programmable.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The BMV-700 is a high-precision battery monitoring device. The device’s main function is to calculate energy consumption and the battery’s state of charge. Energy consumption in ampere-hours is calculated by integrating the current flowing into or out of the battery.
Technical specifications:
- Battery voltage (V).
- Battery charge/discharge current (A).
- Amperes-hour consumed (Ah).
- Charge level (%).
- Time remaining until discharge level is reached.
- Visual and audible alarm: overvoltage, undervoltage and/or low battery.
- Programmable relay for alarm or generator start-up.
Dimensions:
- Diameter: 65 mm
- Thickness: 30 mm
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The BMV-710 is a high-precision battery monitoring device. The device’s main function is to calculate energy consumption and the battery’s state of charge. Consumption in ampere-hours is calculated by integrating the current flowing into or out of the battery.
Technical specifications:
- Battery voltage (V).
- Battery charge/discharge current (A).
- Amperes-hour consumed (Ah).
- Charge level (%).
- Time remaining until discharge level is reached.
- Visual and audible alarm: overvoltage, undervoltage and/or low battery.
- Programmable relay for alarm or generator start-up.
Dimensions:
- Diameter: 65 mm
- Thickness: 30 mm
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
SmartShunt is a complete battery monitor without a display. Your phone acts as the display. SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet), allowing you to conveniently view all monitored battery parameters, such as charge level, remaining time, historical data and much more.
Alternatively, the SmartShunt can also be connected to and read by a GX device. The connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative to a BMV battery monitor, particularly for systems where battery monitoring is required but fewer cables and less clutter are desired.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring an additional battery, average monitoring or a temperature sensor.
Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 46 x 120 x 54 mm;
- protection rating: IP21;
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

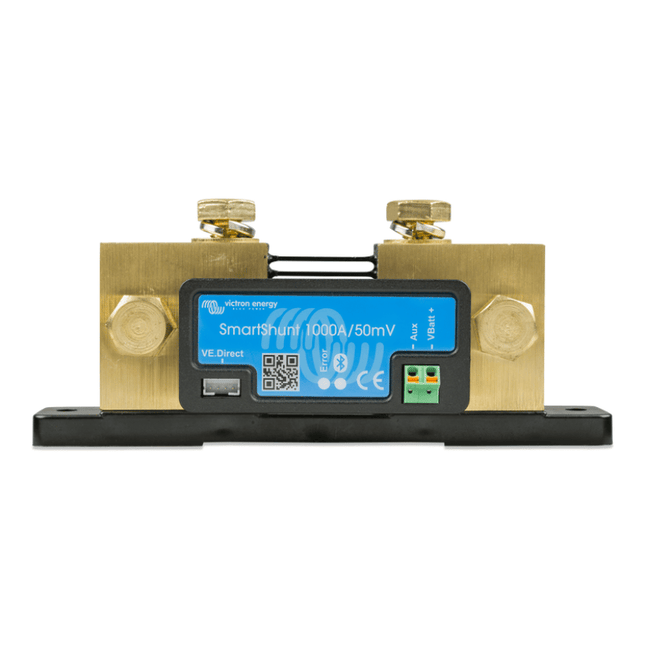

SmartShunt is a complete battery monitor without a display. Your phone acts as the display. SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet), allowing you to conveniently view all monitored battery parameters, such as charge level, remaining time, historical data and much more.
Alternatively, the SmartShunt can also be connected to and read by a GX device. The connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative to a BMV battery monitor, particularly for systems where battery monitoring is required but fewer cables and less clutter are desired.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring an additional battery, average monitoring or a temperature sensor.
Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 68 x 120 x 54 mm;
- protection rating: IP21;
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

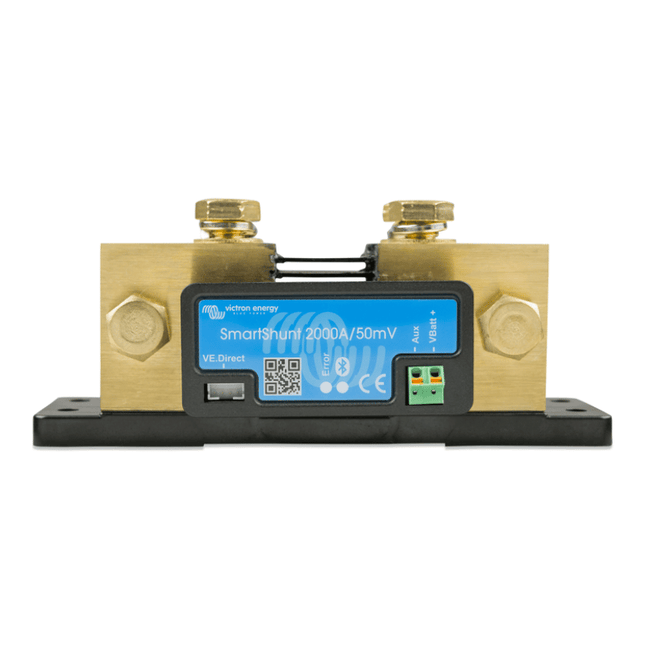

SmartShunt is a complete battery monitor without a display. Your phone acts as the display. SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet), allowing you to conveniently view all monitored battery parameters, such as charge level, remaining time, historical data and much more.
Alternatively, the SmartShunt can also be connected to and read by a GX device. The connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative to a BMV battery monitor, particularly for systems where battery monitoring is required but fewer cables and less clutter are desired.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring an additional battery, average monitoring or a temperature sensor.
Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 68 x 120 x 76 mm;
- protection rating: IP21;
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

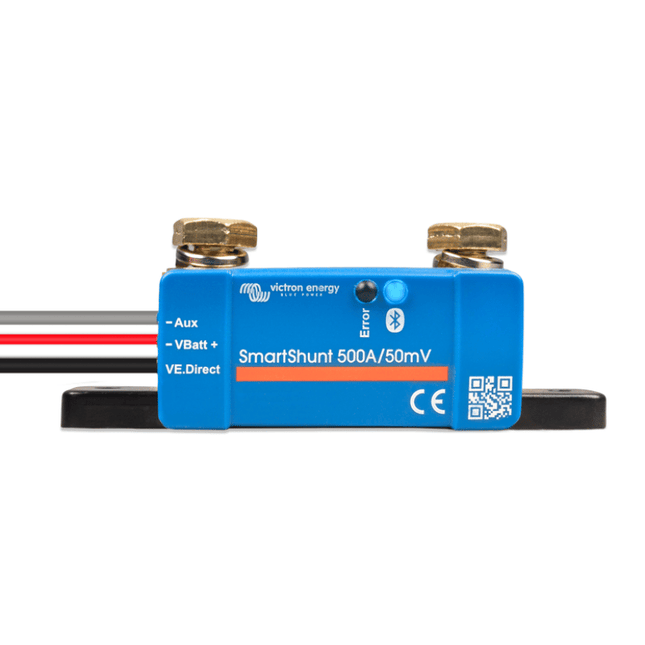

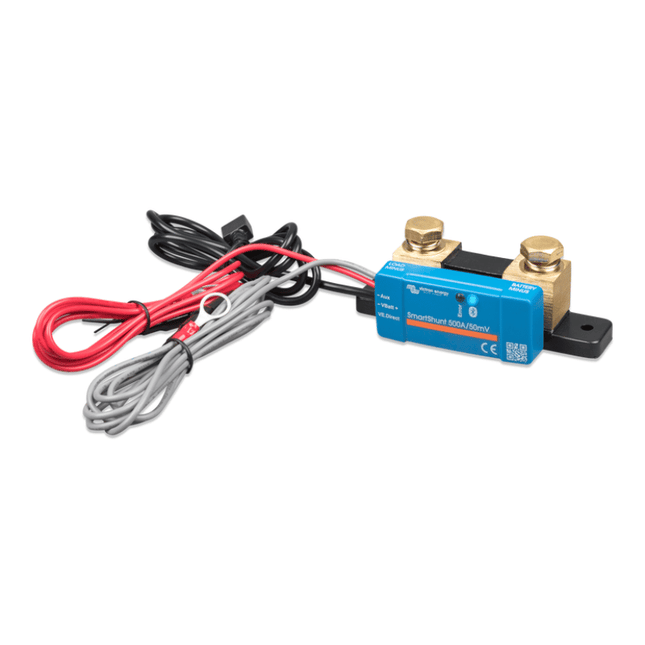

The SmartShunt IP65 is a multifunctional battery monitor, but without a display. Your phone acts as the display.
The SmartShunt IP65 is waterproof and is available in 500 A, 1000 A or 2000 A versions.
Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 46 x 120 x 54 mm;
- protection rating: IP65;
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

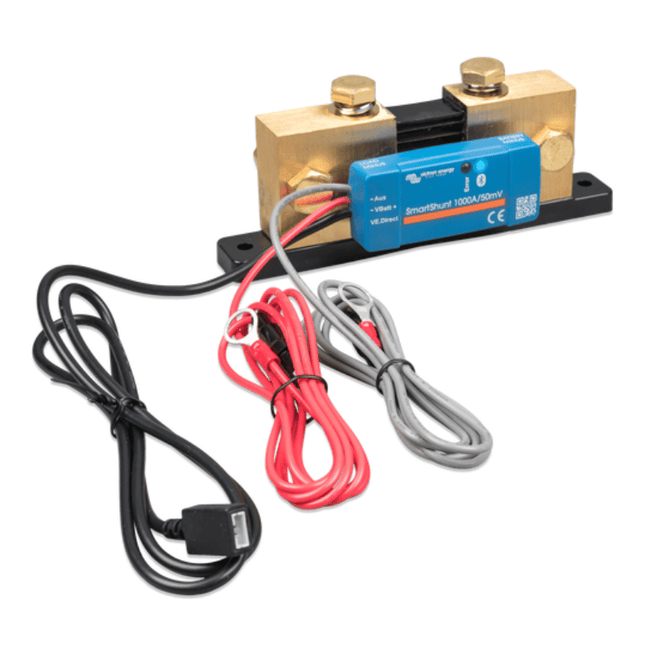

The SmartShunt IP65 is a multifunctional battery monitor, but without a display. Your phone acts as the display.
The SmartShunt IP65 is waterproof and is available in 500 A, 1000 A or 2000 A versions.
Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 68 x 168 x 75 mm;
- protection rating: IP65;
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

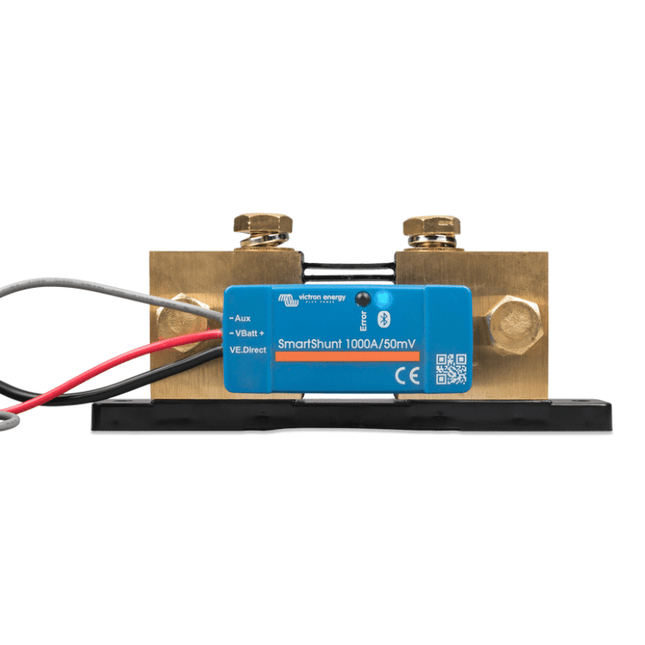

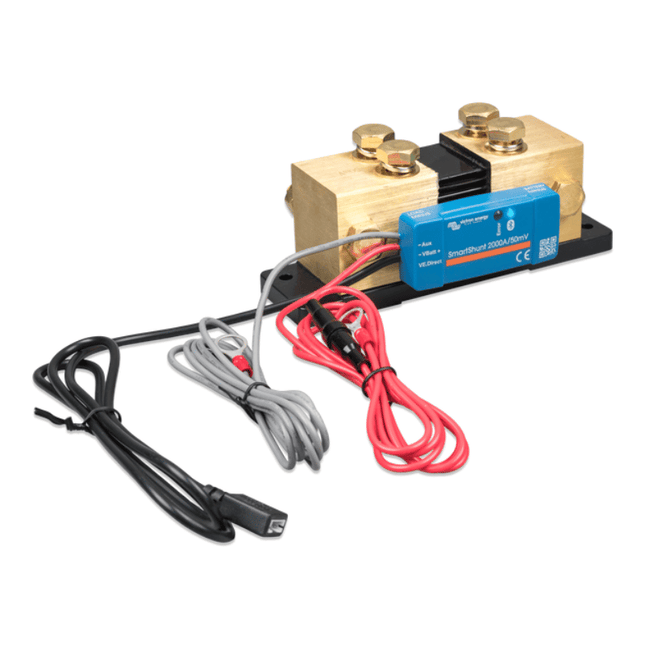

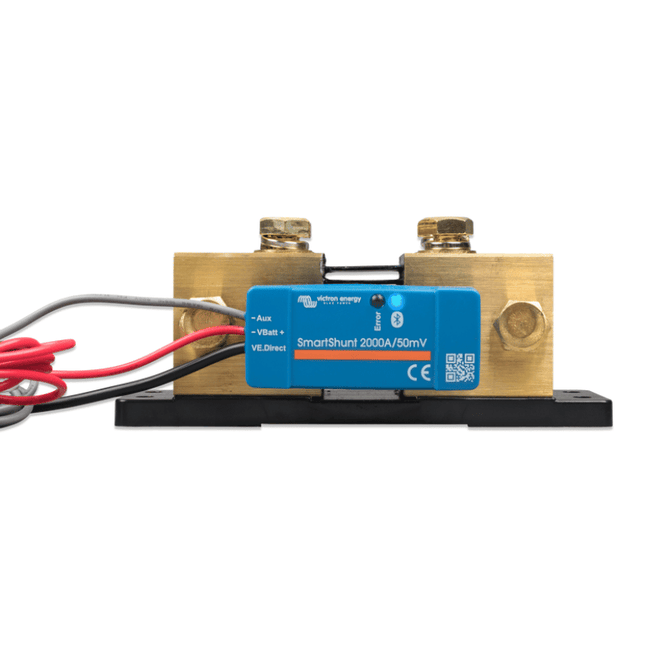

The SmartShunt IP65 is a multifunctional battery monitor, but without a display. Your phone acts as the display.
The SmartShunt IP65 is waterproof and is available in 500 A, 1000 A or 2000 A versions.
Technical specifications:
- voltage range: 6.5–70 VDC;
- input voltage: 6.5–70 VDC;
- battery capacity for which it can be used: 1–9999 Ah;
- operating temperature range: -40°C – 50°C;
- monitors the voltage and temperature of the auxiliary battery;
- Measurement temperature range: -20°C – 50°C;
- VE.Direct communication port;
- dimensions (H x W x D): 68 x 168 x 100 mm;
- protection rating: IP65;
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The choice of energy meter depends on the type of installation, the number of phases you wish to measure, and the maximum current per phase. Examples: for a three-phase connection to the utility grid, a three-phase meter is recommended. In the case of a three-phase photovoltaic inverter, a three-phase meter must also be used. If you have a single-phase connection to the utility grid, choose a single-phase meter.
In a system with a single-phase connection and a photovoltaic inverter that requires measurement with an energy meter, you can opt for two ET112 meters or one ET340 meter. If the application exceeds the maximum rated current, it is advisable to use an energy meter with current transformers. Please also note that most photovoltaic inverters are equipped with a ‘direct reading’ function via the Victron system, so it is not necessary to measure their output with an energy meter.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

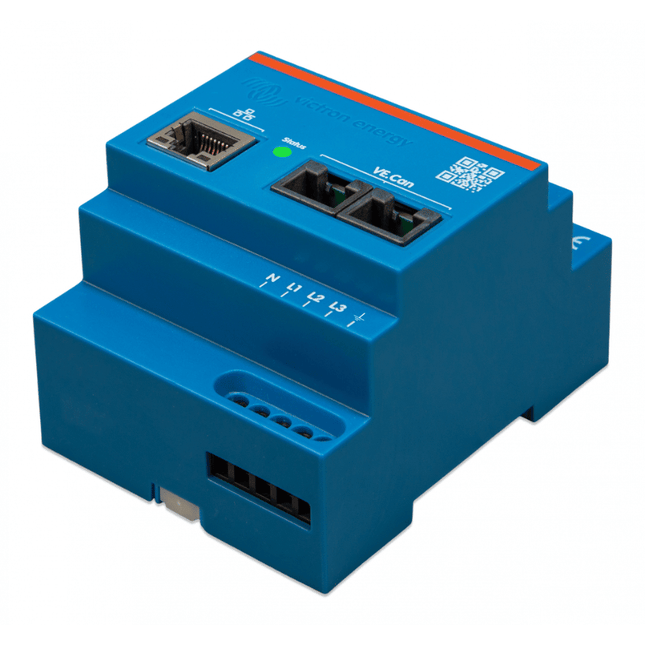

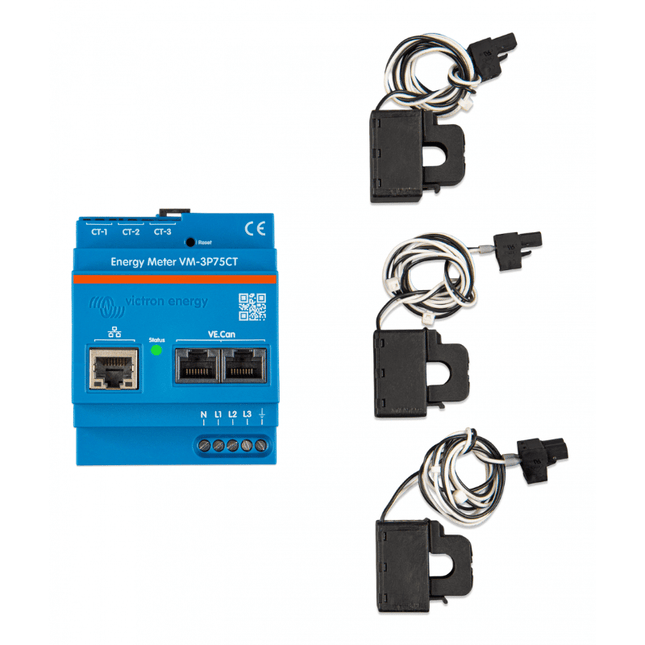

The Victron VM-3P75CT energy meter is a standard device for measuring power and energy in single-phase and three-phase installations.
For example, at the distribution box or to measure the output power of a photovoltaic inverter or an AC generator, or the output of an inverter or an inverter/charger.
Designed for easy integration, the energy meter works out of the box (Plug & Play) as a grid meter for most systems.Configuration (via VictronConnect) is only required to change the role (grid meter, PV inverter, AC generator or AC load) and to manually configure the IP address, rather than using the default DHCP.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

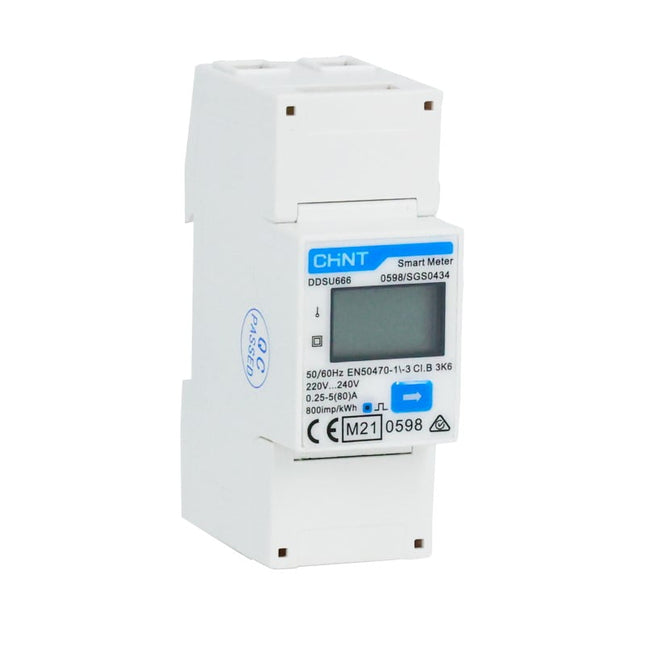

The DEYE DDSU666 single-phase smart meter from CHiNT is an electronic energy meter, ideal for monitoring energy consumption in residential or commercial electrical systems. This model is compatible with DEYE’s on-grid or hybrid inverters, offering an efficient and integrated solution for renewable energy management.
Technical Specifications:
Type: DDSU666, DIN-rail mounting
Rated voltage: 230V
Rated current: 5(80)A, direct connection
Accuracy class: Class 1
Reference frequency: 60Hz
Power consumption: Voltage circuit ≤1W/8VA, Current circuit ≤2.5VA
Measurement characteristics: Measures positive and negative active energy
Communication interface: RS485, Modbus-RTU protocol
Display: LCD, displays voltage, current, active power, reactive power, power factor and frequency
Operating temperature: -25°C to +60°C
Relative humidity: 75% annual average
Atmospheric pressure: 86kPa – 106kPa
The DDSU666 smart meter is equipped with a wide range of functions, including the ability to monitor and analyse power quality, making it ideal for installations in industrial and residential environments thanks to its modular design and ease of installation on a standard 35mm DIN rail. It is an excellent choice for those wishing to optimise energy consumption and monitor the performance of renewable energy systems in real time.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

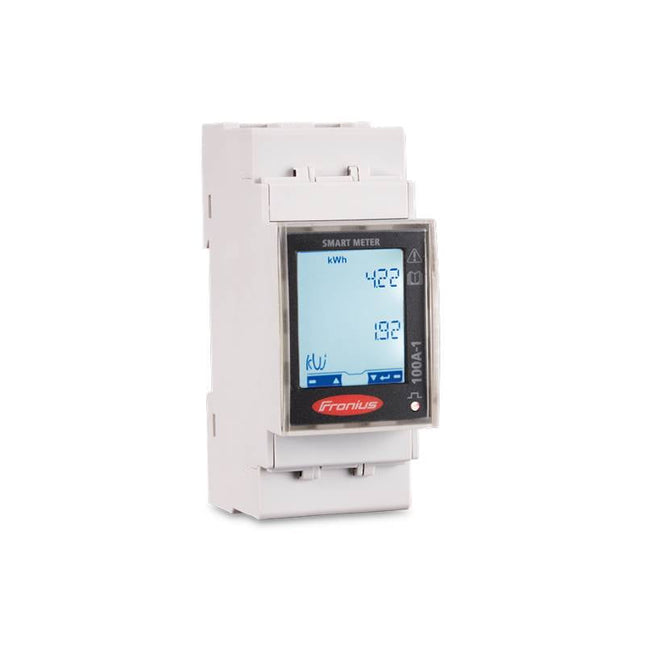

This meter enables energy management through efficient Fronius storage solutions, allowing numerous opportunities for improvement within the photovoltaic system to be identified. It records a load curve of up to 1 x 100 A, and thanks to precise measurements and fast communication via the Modbus RTU interface, it provides an efficient overview of power consumption.
It can be used effectively with the GEN24 Plus or Tauro range of inverters, just as effectively as when used with Fronius inverters via the Fronius Datamanager 2.0.
10 - 20 days
Contact us at contact@solartech.eu for more info regarding the inventory of this product.

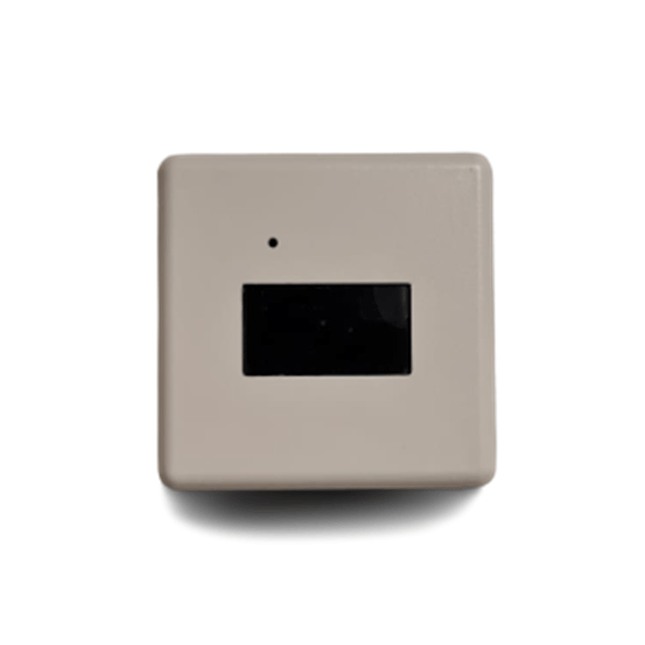

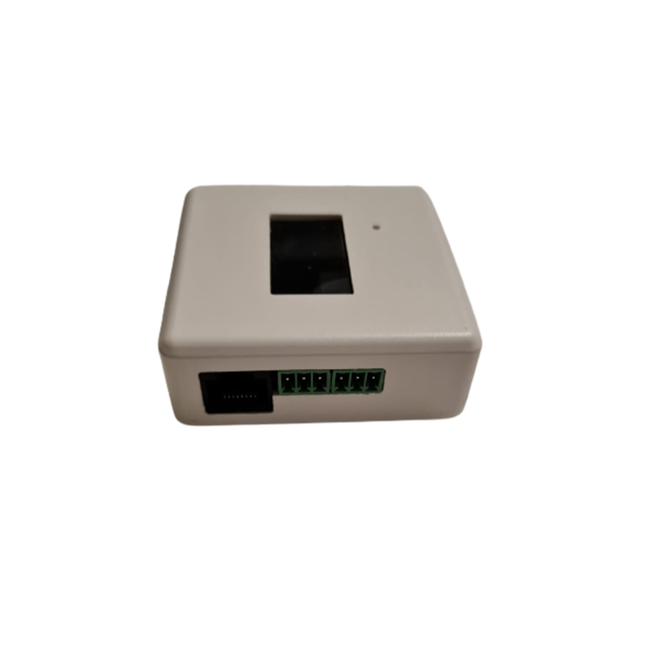

JKLink is an interface adapter compatible with JKBMS battery management systems from the JK-BD6Axxxxxx and JK-BxAxxxxxx families. The JKLink Smart Battery Monitor is a professional product that allows you to integrate the battery with the inverter and monitor the battery’s status. Once connected, it will automatically configure the battery parameters in the inverter and can send key parameters to the cloud via the MQTT protocol. Installation is relatively straightforward, but it is recommended that it be carried out by an authorised person with relevant expertise.
Inverter compatibility:
The JKlink Smart Battery Monitor is compatible with most inverters (Victron/GoodWe/SMA/Voltronic/MPPSolar/Invt/EaSun/Growatt/Deye/etc.) that have an RS485 or CAN interface for battery management. It offers you the option to choose between different inverter families via the web interface.
Features and capabilities:
Display of battery parameter data
Battery voltage (V), Battery current (A), Battery state of charge (SOC), Total power (Wh)
External and battery temperature (degrees Celsius)
Fan speed (rpm)
Fan speed control based on external temperature sensors/BMS and charge/discharge current
RS485 and CAN ports for battery management in the inverter
Programmable relay, high or low battery voltage
WiFi internet connection for cloud monitoring and control (MQTT)
Web interface for battery status and parameters
Inverter and BMS status, charge/discharge status, voltage, current, power, SOC, capacity, average cell voltage, cell delta voltage, external/MOS/internal temperatures, fan speed, relay status.
MQTT broker for Home Assistant and cloud services
OTA firmware update
The JKLink Smart Battery Monitor kit contains:
Interface
Temperature sensor
128x64 LCD display
12V PWM fan (optional)
Cable adapter for JKBMS
Battery power cables
Installation manual
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The SDM630 series measures and displays the characteristics of 1p2w, 3p3w and 3p4w power supplies, including voltage, frequency, current, power, active and reactive energy (imported or exported), harmonics, etc. Its bidirectional measurement capability makes it an ideal choice for solar photovoltaic measurement.
The units support a maximum direct connection of 100A, saving costs and avoiding the hassle of connecting external current transformers. For remote monitoring, two pulse outputs and one communication port (Mbus / Modbus) are provided.
In stock
Contact us at contact@solartech.eu for more info regarding the inventory of this product.
The SDM230 series is a range of single-phase multifunctional energy meters in a 2P configuration. They measure active energy, reactive energy, current, voltage, power, power factor, frequency, demand, etc.
The units support a maximum direct connection of 100A, saving costs and avoiding issues with connecting external current transformers. For remote monitoring, two pulse outputs and one communication port (Mbus / Modbus) are provided.
