Description
This product comes with a 3-year warranty.

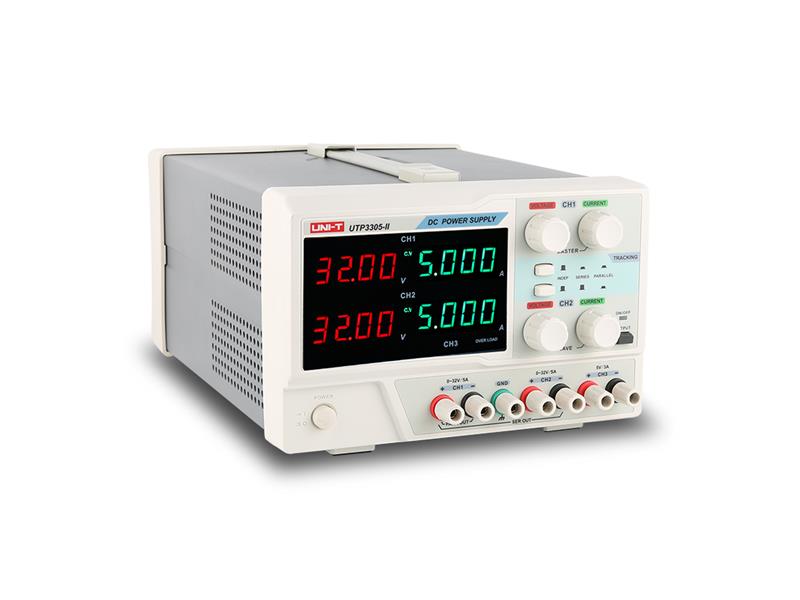

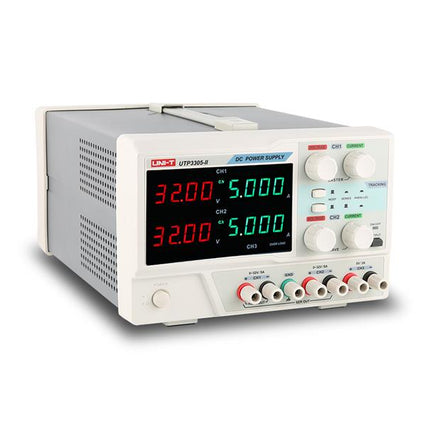

The UTP3305-II laboratory power supplies are high-quality power supplies with three independent channels from the manufacturer UNI-T. The power supplies contain a classic linear transformer, and channels CH1 and CH2 allow operation in constant output voltage mode within the range of 0 to 32V or in constant output current mode from 0 to 5A. Channel CH3 provides a constant output voltage of 5V and features overload protection when the current draw reaches 3A. Channels CH1 and CH2 can operate independently of each other, or can be connected internally in series or in parallel, then supply voltages from 0 to 64V / 0 to 5A or from 0 to 32V / 10A. The laboratory power supplies have four LED displays that show voltages and currents simultaneously, with 4-digit accuracy on each of the CH1 and CH2 channels. The power supply contains a temperature-controlled fan; the long-term thermal overload of the laboratory power supply’s transformer is monitored by a sensor, which shuts down the power supply when the limit value is reached and restarts it after cooling. The device is CE certified.
Product parameters:
- setting of currents and voltages using fine multi-turn potentiometers
- four four-digit LED displays for immediate monitoring of voltages and currents in channels CH1 and CH2
- Voltage setting from 0 to 32V with a resolution of 0 to 32V with a resolution from 0/10V to
-m resolution of 1mA
- operation of channels CH1 and CH2 in constant voltage and constant current modes
- option to connect channels CH1 and CH2 internally in series or in parallel
- CH3 channel with fixed voltage of 5V, max. 3A
- temperature-controlled cooling fan
- disconnection from the power supply when the transformer is thermally overloaded

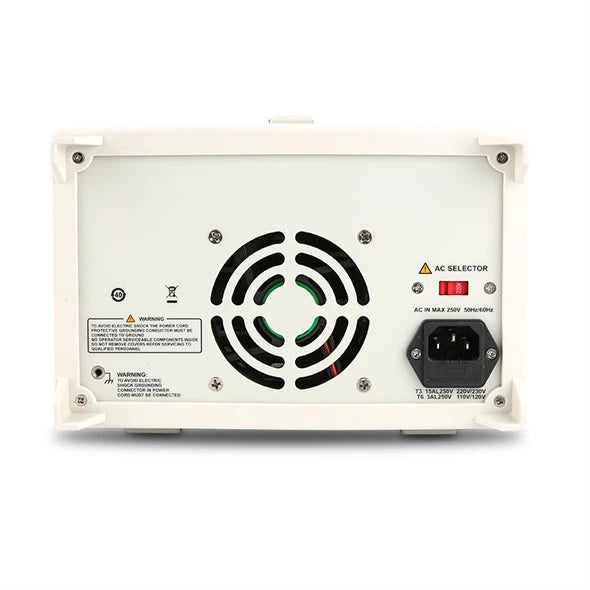

- 110V / 120V / 220V / 230V (AC 50 / 60Hz) input voltage selector on the rear
Technical output voltage
CH1 and CH2: 0 to 32 V
- CH1 and CH2 rated output current: 0 to 5 A
- CH3 rated output voltage / current: 5 V / max. 3 A
- total rated output power: 335W
- voltage / current setting resolution: 10 mV / 1 mA
- voltage setting accuracy: ± (0.1% of measured value + 30 mV)
- current setting accuracy: ± (0.3% of measured value)
- 0.3% of measured value + 0.1% of measured value plus noise (0–20 MHz) at CH1 and CH2 outputs: ≤1 mV RMS / ≤3 mA RMS
- ripple and noise at the CH3 output: ≤2mV
- temperature coefficient: voltage ≤300 ppm/°C // current ≤300 ppm/°C
Recovery time:
50%, minimum load: 0.5A)
- Rated supply voltage: AC 110V / 120V / 220V / 230V / (50 / 60Hz)
- protection via tubular fuse type: F10AL250V (when powered by 110/120V AC), (powered by 110/120V AC) 230V AC)
- power consumption: 700W
- dimensions: 319 x 146 x 226mm
- weight: 10.5kg
Package contents:
- UTP3305-II laboratory power supply
power cable
clips
- user manual
MANUFACTURER: UNI-TREND
