Description
This product comes with a 3-year warranty.

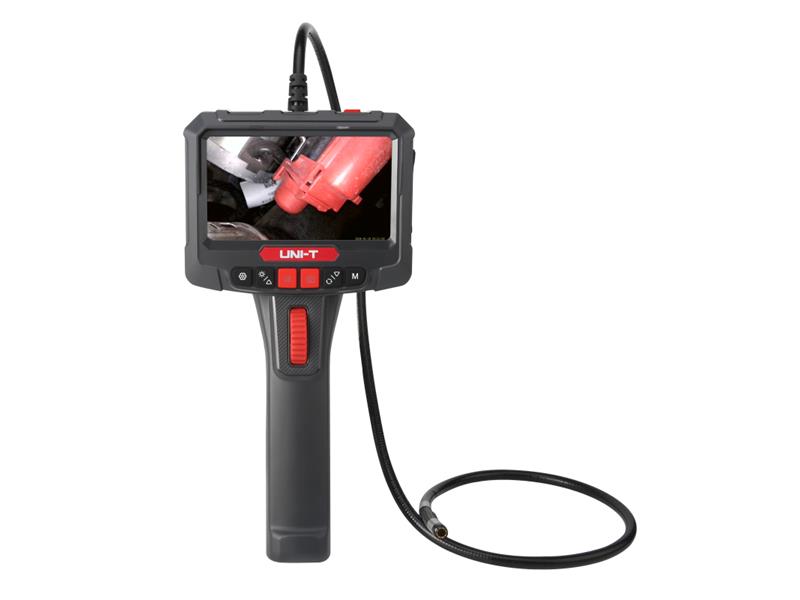

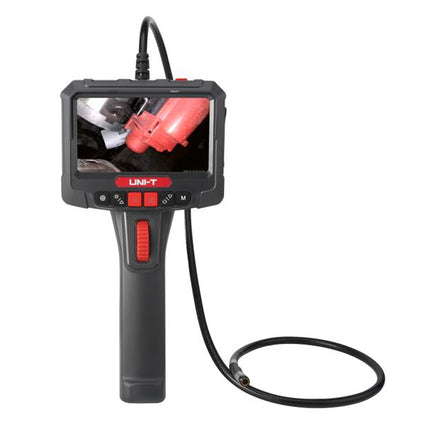

UNI-T UT663B 360° rotating industrial borescope.
The UNI-T UT663B series industrial borescope is specially designed and manufactured to meet market demands for complex environments that are beyond the reach of the human eye. The camera is equipped with 180° bidirectional rotation, allowing it to navigate around blind spots and adjust angles, making it suitable for various narrow and curved spaces that are difficult to access.

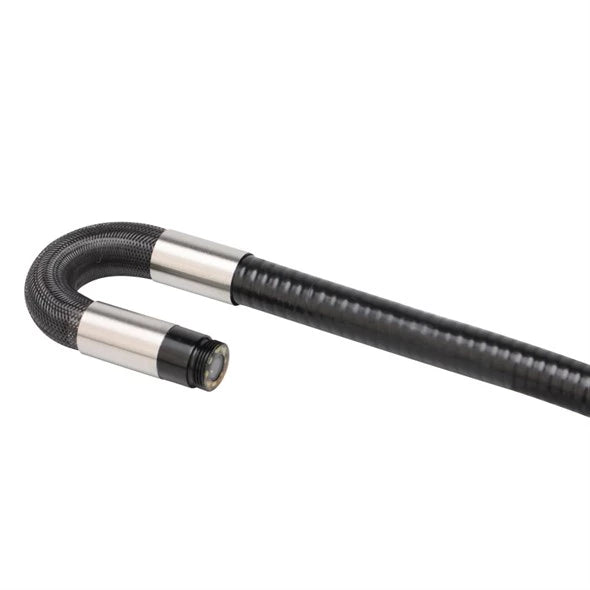

It is used to inspect engines, pipes, ventilation ducts, cavities in building walls, drainpipes and other hard-to-reach places. The camera probe is located at the end of a 1-metre flexible cable and is equipped with LED lighting, whilst the flexible snake tube can be bent into the desired shape. The ergonomic handle design provides a good grip and is non-slip and shock-resistant. The probe has an IP67 rating and can be submerged in water. The UT663B is an indispensable tool in the automotive and mechanical industries, service stations, workshops or construction sites.
Product specifications:
- Certification: CE, RoHS
- 5″ HD colour display
- 8 LEDs with adjustable brightness
- Bidirectional photo rotation
Capture
- Battery: Li-ion
- High-temperature shutdown protection
- IP67-rated camera
- Flexible cable length: 1 m
Technical specifications:
- Display size: 5″ HD Colour
- Camera resolution: JPG 1920 x 10810 pixels, AVI 10810 pixels
- Basic functions: photo capture, video recording, playback, high temperature warning protection, image rotation, audio recording
- Standard storage: 32 GB TF (maximum 64 GB)
- rotation angle: 180° bidirectional
- Flexible cable length: 1 m
- Probe diameter: 8 mm
- Light sensor: 8 mm CMOS
- lens field of view (FOV): 70°
- Depth of field (DOF): 20 mm to 100 mm
- Illumination intensity adjustment: 4 levels + off
- Field of view illumination: 8 LEDs
- Lens pixels: 1000 K/3: probe protection
-7: / 3000 mAh battery
- battery life: 4 hours
Operating conditions:
- Lens temperature: 0 °C to 80 °C
- operating temperature: 0 °C to 45 °C
- humidity: < 90% RH
- Device dimensions: 1,673 mm
- x 1,673 mm weight: 690 g

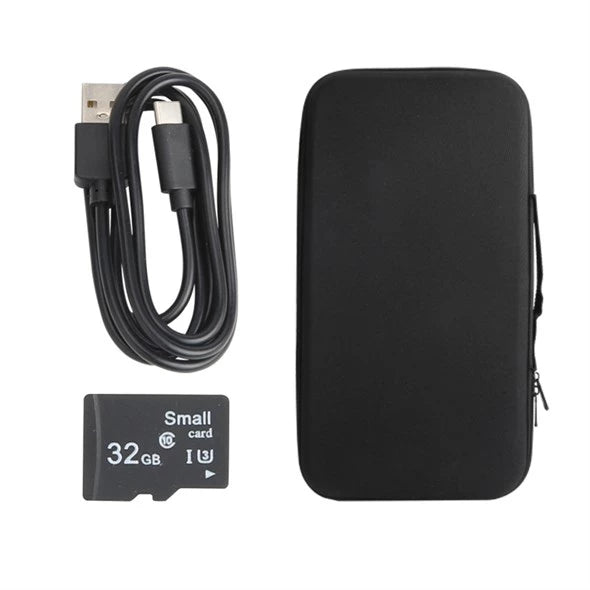

Package contents:
- endoscopic camera
- detachable probe with lens
- 32GB TF card
- user manual
- standard quantity per box: 6 pcs
MANUFACTURER: UNI-
