Description
This product comes with a 3-year warranty.

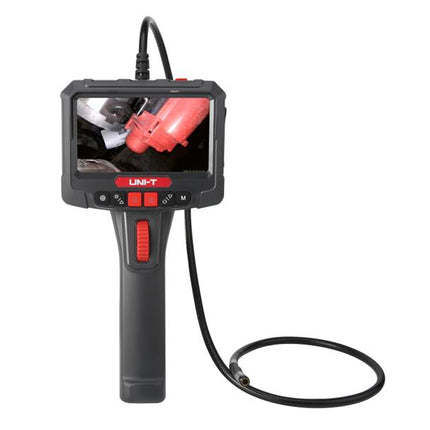

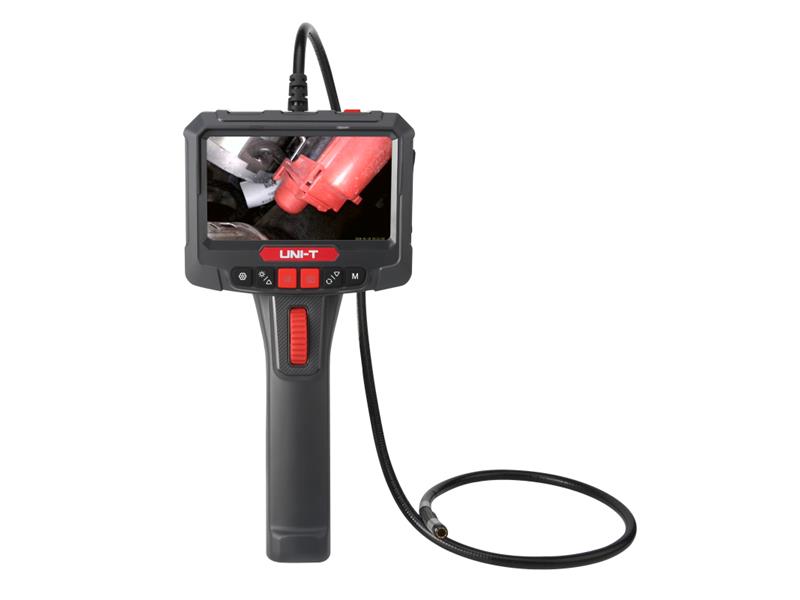

UNI-T UT663B-3m 360° rotating industrial borescope.
The UNI-T UT663B-3m series industrial borescope is specially designed and manufactured to meet market demands for complex environments that are beyond the reach of the human eye. The camera is equipped with 180° bidirectional rotation, allowing it to navigate around blind spots and adjust angles, making it suitable for various narrow and curved spaces that are difficult to access.

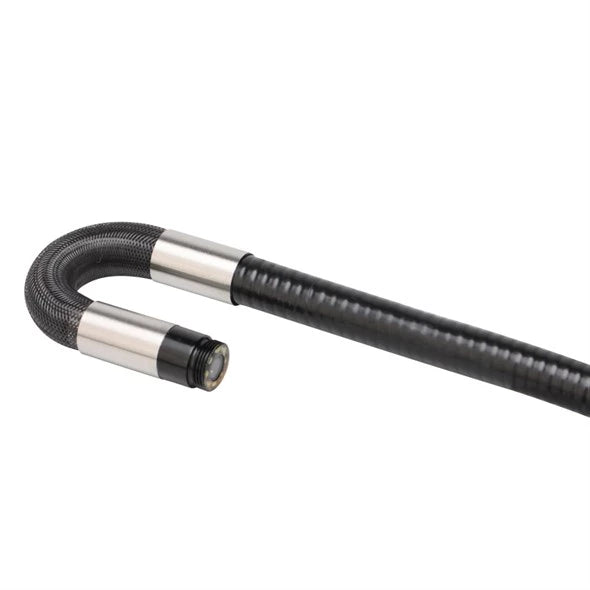

It is used to inspect engines, pipes, ventilation ducts, building wall cavities, drain pipes and other hard-to-reach places. The camera probe is located at the end of a 1-metre flexible cable and is equipped with LED lighting, whilst the flexible snake tube can be bent into the desired shape. The ergonomic handle design provides a good grip and is non-slip and shock-resistant. The probe has an IP67 rating and can be submerged in water. The UT663B-3m is an indispensable tool in the automotive and mechanical industries, service stations, workshops or construction sites.
Product specifications:
- Certification: CE, RoHS
- 5″ HD colour display
- 8 LEDs with adjustable brightness
- Two-way video
->- 180
->- 180° rotation Battery: Li-ion
- High-temperature shutdown protection
- IP67-rated camera
- Flexible cable length: 3 m
Technical specifications:
- Display size: 5″ HD Colour
- Camera resolution: JPG 1920 x 1080 pixels, basic AVI function 1920 pixels: 1920-pixel photo
- Capture, video recording, playback, high temperature warning protection, image rotation, audio recording
- standard storage 32 GB TF (maximum 64 GB)
- Rotation angle: 180° bidirectional
- flexible cable length: 3 m
- lens probe diameter: 8 mm
- light sensor
-
-
light sensor
- 70°
- lens focus (DOF): 20 mm to 100 mm
- light intensity adjustment: 4 levels + off
- field of view illumination: 8 LEDs
- lens pixels: 1000 K
- Probe protection: IP67
- Power supply: 30.0 V / mAh:
- Battery life: 30.00 V 4 h
Operating conditions:
- Lens temperature: 0 °C to 80 °C
- operating temperature: 0 °C to 45 °C
- Humidity: < 90% RH
- Device dimensions: 273 mm x 66 mm x 139 mm Product weight

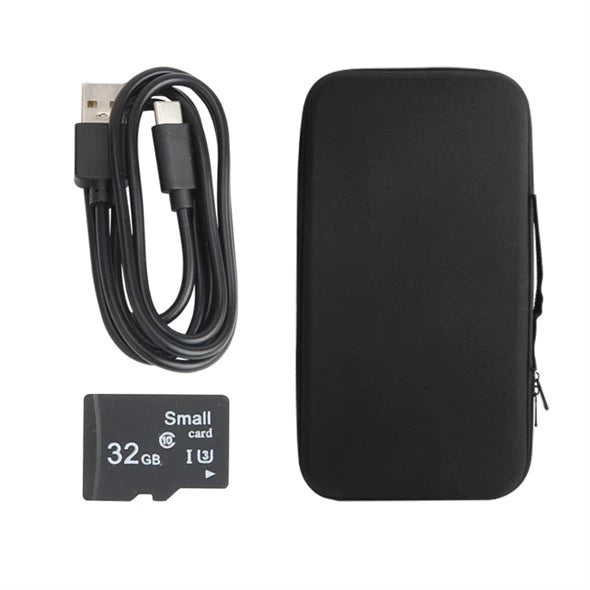

Contents:
- endoscopic camera
- detachable probe with lens
- 32GB TF card
- user manual
- standard quantity per box: 6 pcs
MANUFACTURER: UNI-TREND
