Descrizione

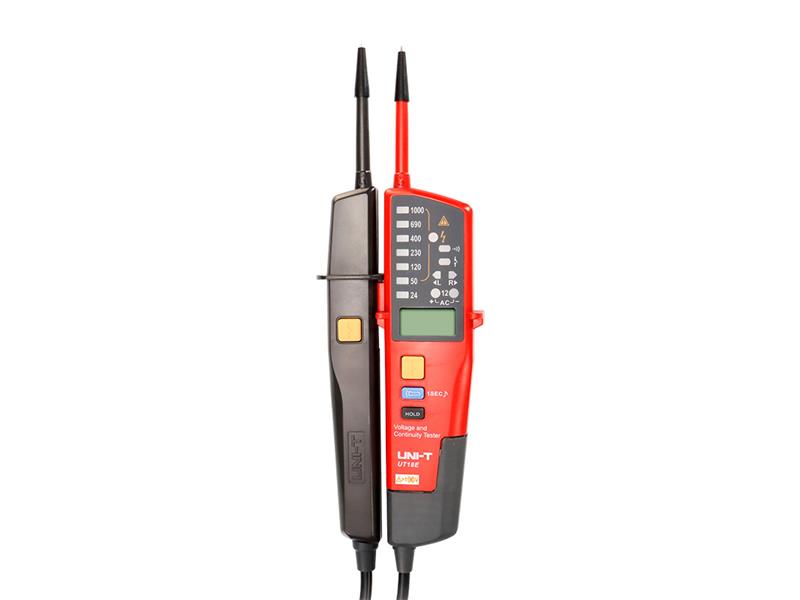

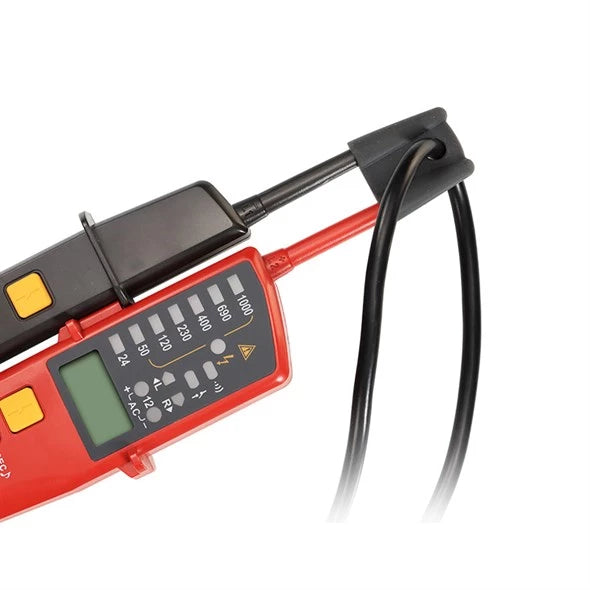

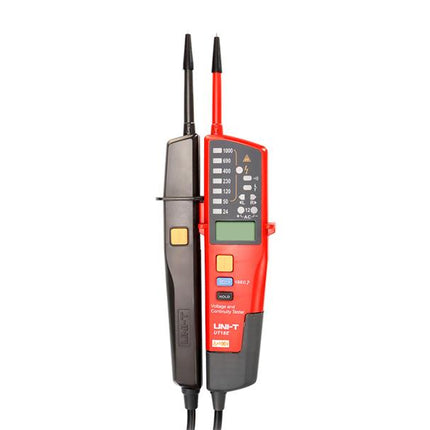

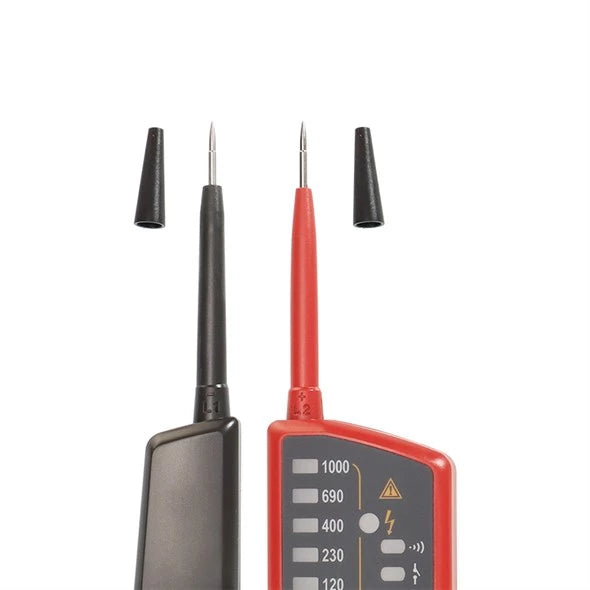

This product comes with a 3-year warranty. UNI-T UT18E tester. The UT18 series tester is designed to test AC/DC voltage (up to 1000V), three-phase voltage, phase sequence, continuity and much more. This series is CAT IV 600V rated and meets the IP65 protection standard. The voltage tester is designed to make life easier for electricians, technicians and other professionals working with electricity in all environments.
It is equipped with several useful functions for voltage identification. It has an automatic mode that detects AC or DC voltage and signals the presence of voltage via an audible and visual warning.
Product specifications:
- 8 voltage levels: 12V, 24V, 50V, 120V, 230V, 400V, 400V, 1/900V, 1/900V
sequence test
- automatic polarity test
- RCD function - residual current device test
- automatic shut-off
- Frequency measurement
- low impedance measurement
- Simultaneous LED and LCD display
- Audible alarm
- built-in LED torch
- CAT III 1000V / CAT III 10 600V
Technical specifications:
- voltage (AC/DC)
6V ±(1.5% + 1)
12V ±(1.5% + 2)
24V ±(1.5% + 2)
50V ±(1.5% + 1)
50V ±(1.5% + 4)
230V ±(1.5% + 5)
400V ±(1.5% + 5)
690V ±(1.5% + 5)
1000V ±(1.5% + 5)
phase rotation test 1.5% + 5)
-0 V AC, ~ 4–0 V AC 50 Hz–60 Hz
- continuity test
- audible and visual LED indication
- residual current device test 230V (50-400Hz)
- polarity detection
- automatic range: full range
- 1100V surge protection
- automatic standby current<br/1:0; full range
- Low battery indication: approx. 2.4 V
- LCD display (voltage): 6V–1000V
- LCD display (frequency): 40Hz–400Hz ±(3%+5)
- IP65 protection
- CAT III 1000V; CAT IV 600V
- Product colour: red, black
- Power supply: 2 x 1.5V AAA LR03 batteries
- Product weight (including batteries): 277g
- product dimensions: 272 x 85 x 31 mm
- Standard quantity per cardboard box: standard dimensions: 4 pcs. 380 x 365 mm
Manufacturer: UNI-TREND
