Descrizione

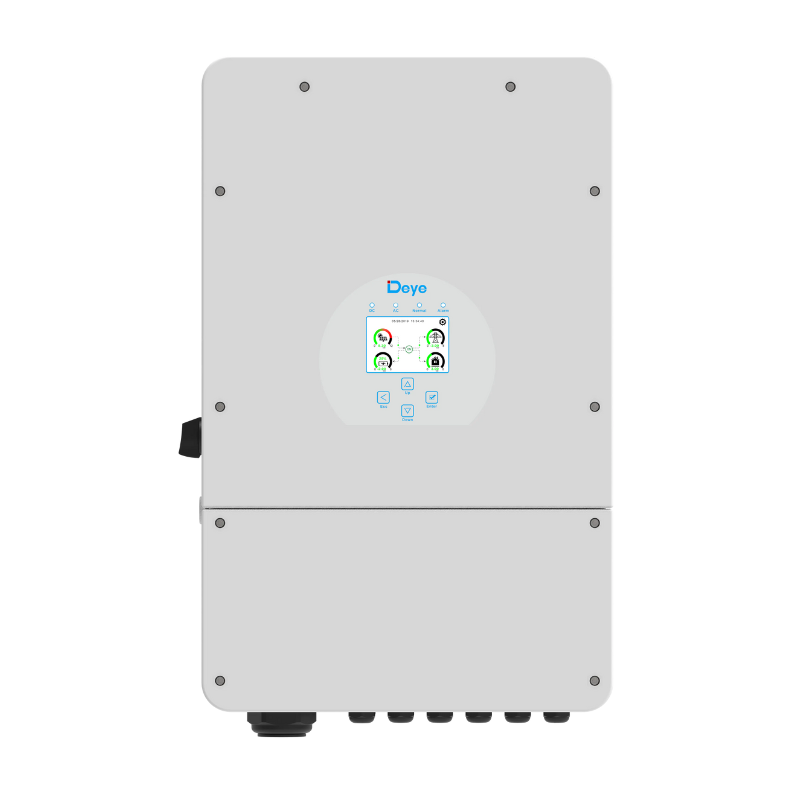

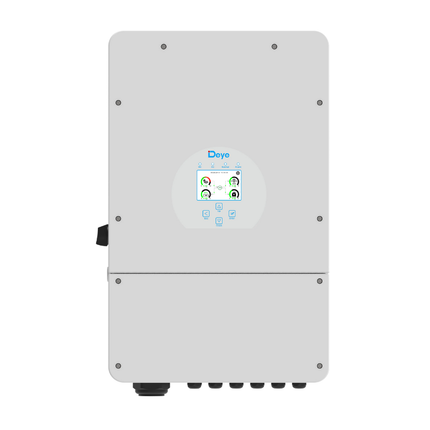

The DEYE Hybrid 12kW 3xMPPT SUN-12K-SG02LP1-EU-AM3 inverter is a top-of-the-range single-phase inverter, designed for use in advanced solar systems. This hybrid inverter, compatible with low-voltage (LV) batteries, offers a versatile solution for energy management in both on-grid and off-grid applications. With three MPPT trackers, it maximises solar energy capture efficiency, and with a charging and discharging capacity of up to 250A, it is ideal for residential and commercial applications. Support for diesel generators and IP65 protection ensure safe and reliable operation in any environment. The colour touchscreen adds a touch of user-friendliness, making energy management easier than ever.
Technical data:
- System: Single-phase
- Rated power: 12kW
- Maximum charge/discharge current: 250A
- LV battery support: Yes
- Nominal input/output voltage: 220/230V
- Maximum efficiency: 97.6%
- Protection rating: IP65
- Number of MPPT trackers: 3
Advantages:
- Compatibility with LV batteries for better energy storage management
- Support for diesel generators, ideal for off-grid applications and remote locations
- Allows parallel operation of up to 16 units, offering maximum flexibility
- Multiple built-in protections and colour touchscreen for safe and intuitive operation
- Certified to international standards for global use
